MIL-DTL-2726-73 Receptacle, Electrical, 15-Ampere, 125-Volt, Bladed Type, Grounded \(Portable\) \(Symbol No. 1215\)

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8

MIL-DTL-2726/73C

Inches

.031

0.79

.045

1.79

.063

1.60

.160

4.06

.194

4.93

.200

5.08

.219

5.56

.290

7.37

.550

13.97

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for information only.

3. Cable length "A" may be 6 inches or 10 inches.

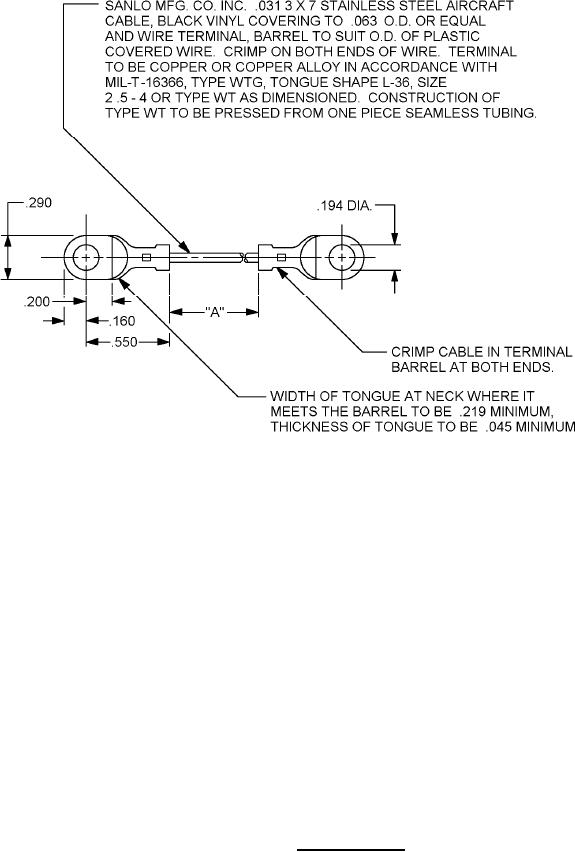

FIGURE 6. Cable assembly.
