MIL-DTL-28754/17D
Inches
mm
Inches
mm
4.67
.184
0.25
.010
4.83
.190
0.76
.03
54.30
2.137
1.14
.045
54.40
2.143
1.40
.055
58.50
2.302
2.18
.086
59.00
2.322
2.31
.091
2.41
.095
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Break sharp edges .015 inch (0.38 mm) maximum.
4. Material: Stainless steel in accordance with ASTM A240, type 304, annealed, finish in accordance
with ASTM A480 No. 2B. Magnetic permeability shall not be higher than 1.02 at 200 oersteds (air
equal to 1.00).
5. Passivate in accordance with SAE AMS-QQ-P-35, type optional.
6. Unless otherwise specified tolerances are ± .005 inch (0.13 mm) for three place decimals and
± .01 inch (0.25 for two place decimals). For angles the specified tolerance is ± 2°.

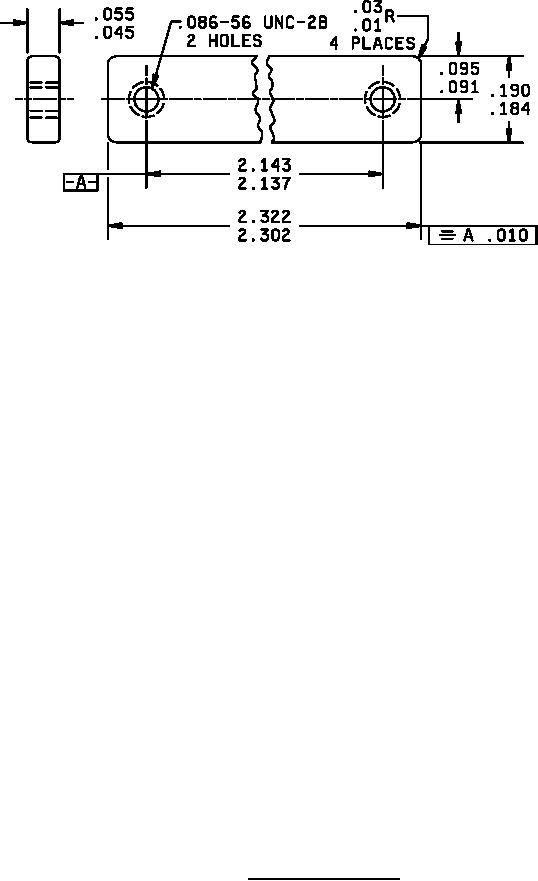

FIGURE 2. Cable clamp MS14060.
