MIL-DTL-28754/17D
Inches
mm
.004
0.10
.005
0.13
.008
0.20
.01
0.25
.019
0.48
.025
0.64
.027
0.69
.035
0.89
.036
0.91
.043
1.09
.164
4.17
.200
5.08
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Break sharp edges .005 inch (0.13 mm) maximum.
4. Material: Steel in accordance with ASTM A 582, type 303 or 303Se, condition annealed.
5. Passivate in accordance with SAE AMS-QQ-P-35, type IV.
6. Inside corners: .005 inch (0.13 mm) R maximum.
7. Unless otherwise specified tolerances are ± .005 inch (0.13 mm) for three place decimals and
± .01 inch (0.25 for two place decimals). For angles the specified tolerance is ± 2°.

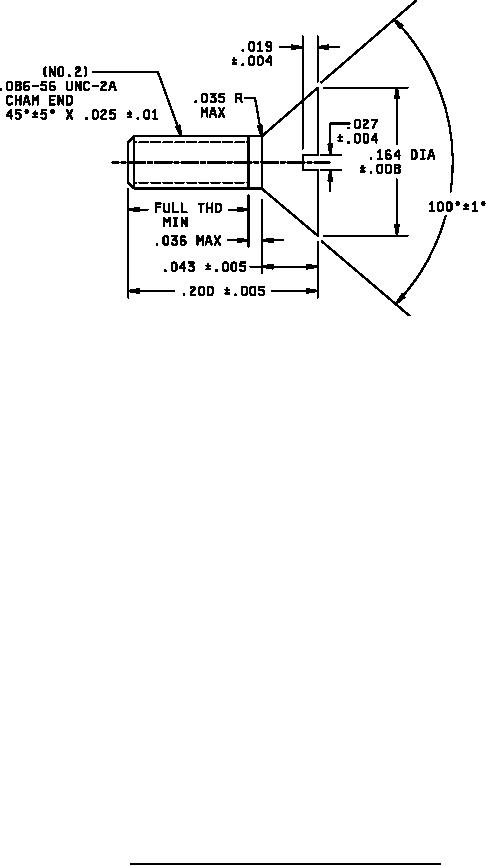

FIGURE 4. Flat head screw - cable clamp (.200) MS14066.
