MIL-DTL-28754/17D
Inches
mm
.004
0.10
.005
0.13
.008
0.20
.01
0.25
.016
0.41
.02
0.51
.023
0.58
.029
0.74
.031
0.79
.043
1.09
.073
1.85
.138
3.51
.250
6.35
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Break sharp edges .005 inch (0.13 mm) maximum.
4. Material: Steel in accordance with ASTM A 582, type 303 or 303Se, condition annealed.
5. Passivate in accordance with SAE AMS-QQ-P-35, type IV.
6. Inside corners: .005 inch (0.13 mm) R maximum.
8. Unless otherwise specified tolerances are ± .005 inch (0.13 mm) for three place decimals and
± .01 inch (0.25 for two place decimals). For angles the specified tolerance is ± 2°.

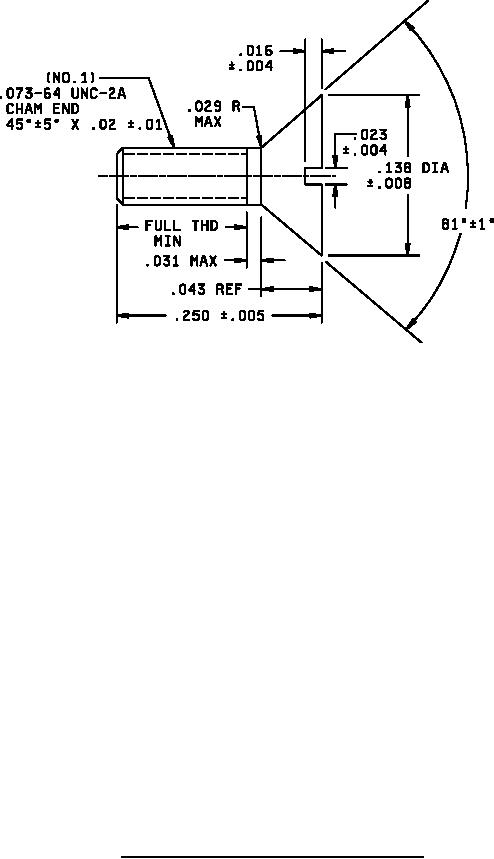

FIGURE 5. Flat head screw - cover plate (.250) MS14065.
7
