MIL-DTL-38999-31 Connectors, Electrical, Circular, Threaded, Plug, Lanyard Release, Fail-Safe, Removable Crimp Contacts, Pins, Shell Size 25, Series Iii, Metric

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10

MIL-DTL-38999/31E

Inches

0.8

.03

7.11

.28

15.01

.59

48.26

1.90

51.56

2.03

6.3

.25

9.5

.37

42.5

1.67

2.01

NOTES:

1. Dimensions are in millimeters. Inch equivalents in parentheses are given for information only.

2. Polarizing position N is shown.

3. EMI grounding feature required on this connector.

4. The Government may stock, store and issue this configuration.

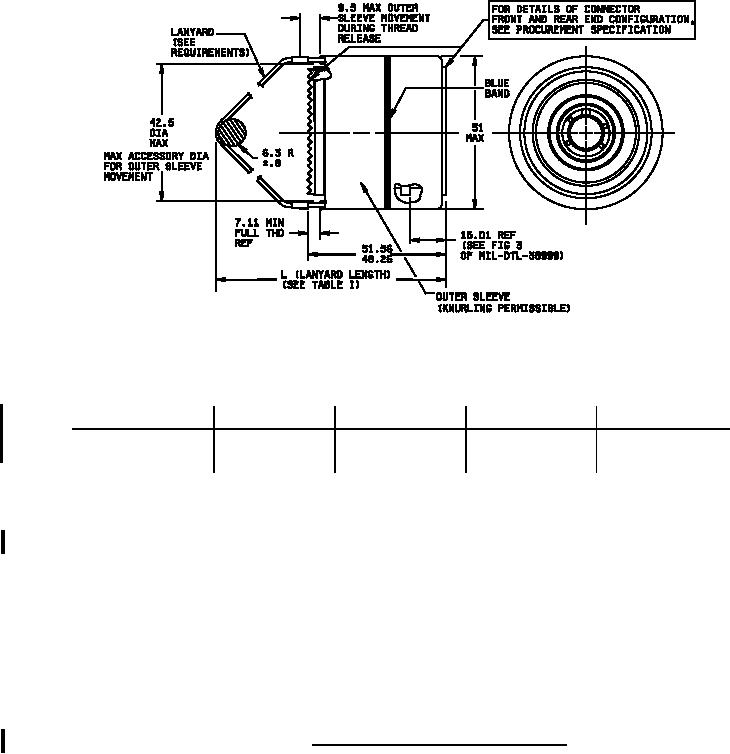

FIGURE 6. Plug, classes R, W, T, X and Z, type 6.
