INCH-POUND
MIL-DTL-83503/25C
21 July 2004
SUPERSEDING
MIL-DTL-83503/25B
17 June 1988
DETAIL SPECIFICATION SHEET
CONNECTORS, ELECTRICAL, FLAT CABLE, NONENVIRONMENTAL
FOUR WALL HEADER, STRAIGHT THRU (.100 SPACING) WITH POLARIZING FEATURE,
SOLDERLESS WRAPPOST OR PWB TERMINATION
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-83503.

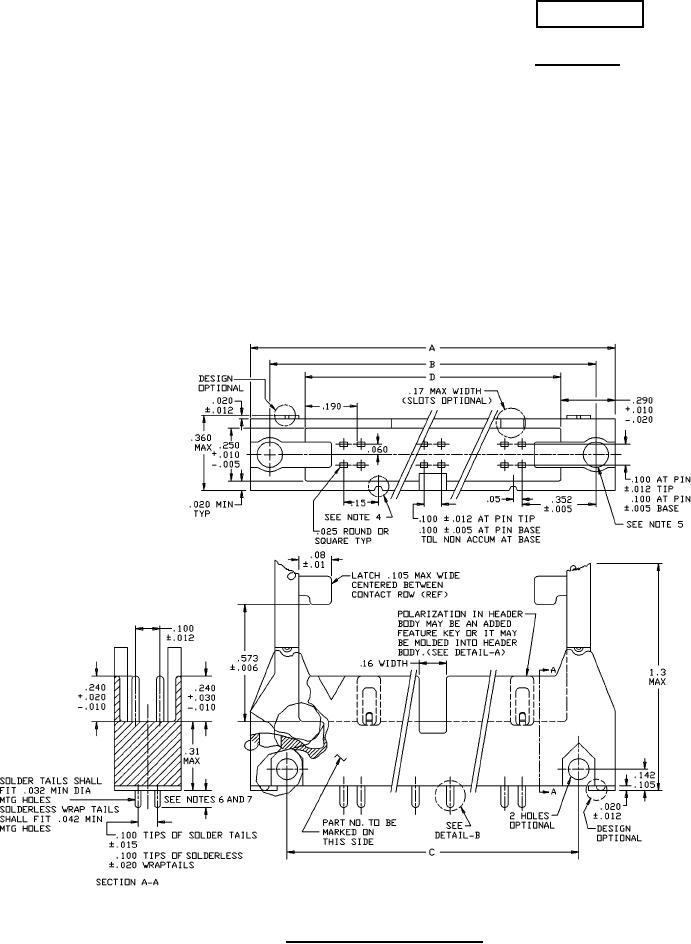

FIGURE 1. Dimensions and configuration.
AMSC N/A
FSC 5935
