MIL-DTL-83503/25C
Number
"E" Length
of wrapped
Wire gage
Wire gage
corrections
28
26
inch
inch
(mm)
(mm)
.219
.226
1
(5.56)
(5.74)
.388
.402
2
(9.85)
(10.21)
.557
.578
3
(14.15)
(14.68)
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.

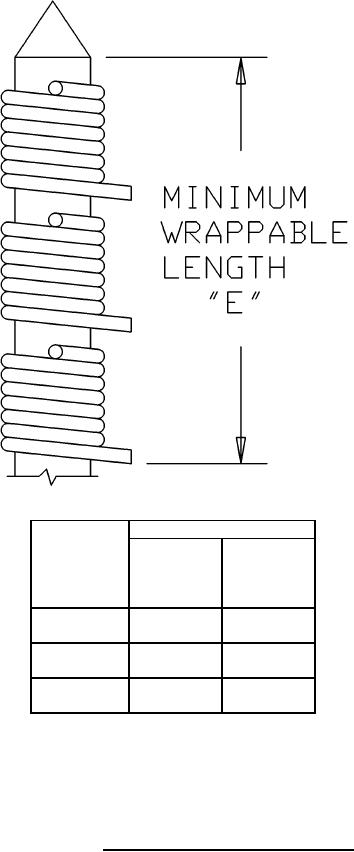

FIGURE 2. Wrappable length (typical connection).
