MIL-DTL-83513/5H
Inches
mm
Inches
mm
.010
0.25
.088
2.24
.020
0.51
.125
3.18
.025
0.64
.154
3.91
.030
0.76
.155
3.94
.040
1.02
.175
4.45
.045
1.14
.185
4.70
.062
1.57
.190
4.83
.086
2.18
.475
12.07
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. MS35333-69 in accordance with NASM35333 and MS35338-134 in accordance with NASM35338.
(Copies of these documents are available online from https://www.aia-aerospace.com or from the
Aerospace Industries Association of America, 1000 Wilson Boulevard, Suite 1700,Arlington, VA
22209-3901.)

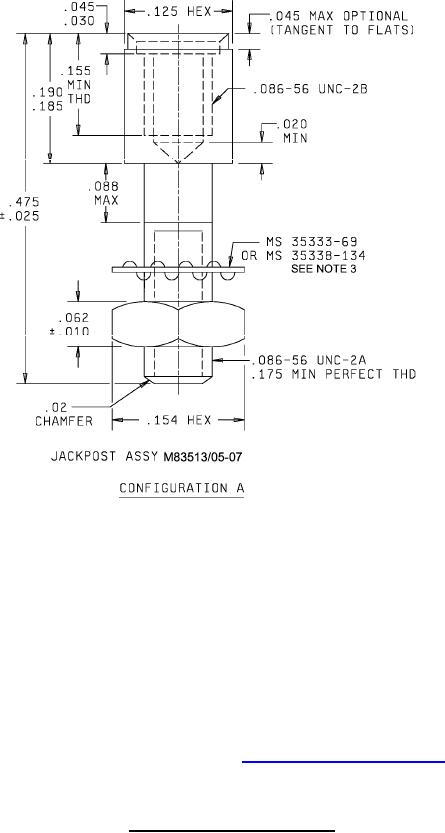

FIGURE 2. Dimensions and configurations.
