MIL-DTL-83513/5H
Inches
mm
Inches
mm
.003
0.08
.088
2.24
.010
0.25
.112
2.84
.02
0.51
.140
3.56
.025
0.64
.170
4.32
.030
0.76
.175
4.45
.040
1.02
.185
4.70
.045
1.14
.187
4.75
.062
1.57
.215
5.46
.475
12.07
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. MS35333-70 in accordance with AIA/NAS NASM35333 and MS35338-135 in accordance with
AIA/NAS NASM35338.
(Copies of these documents are available online from https://www.aia-aerospace.com or from the
Aerospace Industries Association of America, 1000 Wilson Boulevard, Suite 1700,Arlington, VA
22209-3901.)

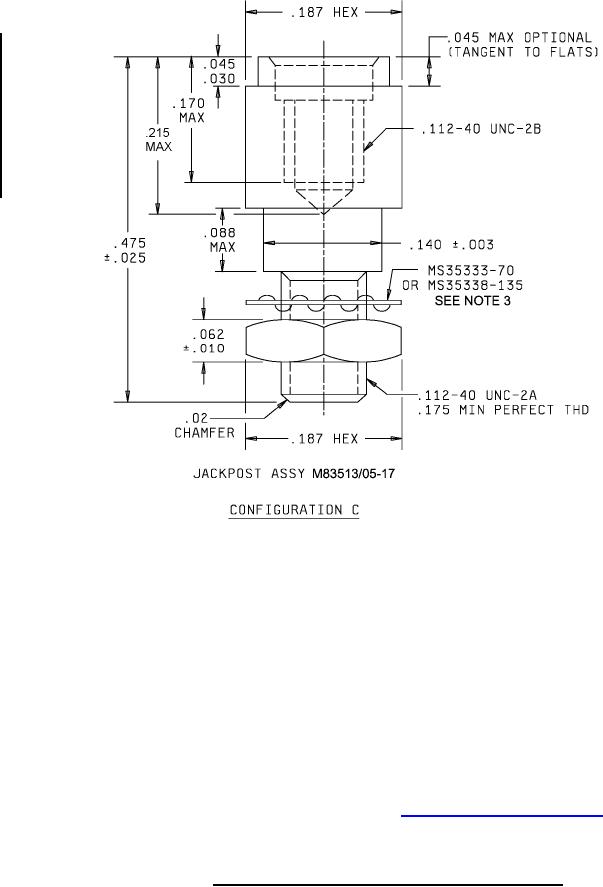

FIGURE 4. Dimensions and configuration (100 cavity connector).
5
