MIL-DTL-83513/5H
Inches
mm
Inches
mm
.005
0.13
.112
2.84
.02
0.51
.116
2.95
.051
1.30
.118
3.00
.070
1.78
.125
3.18
.083
2.11
.156
3.96
.086
2.18
.160
4.06
.088
2.24
.166
4.22
.090
2.29
.235
5.97
.103
2.62
.240
6.10
.108
2.74
.258
6.55
.110
2.79
.452
11.48
.111
2.82
.610
15.49
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Bottom of E ring slot.
4. E ring Part or Identifying Number (PIN): R271NAC0006NN519HNQA1 or
R271NAC0006NN519HNQD1 in accordance with ASME-B18.24.
(Copies of these documents are available online at https://www.asme.org or from the ASME
International, Three Park Avenue, New York, NY 10016-5990.)

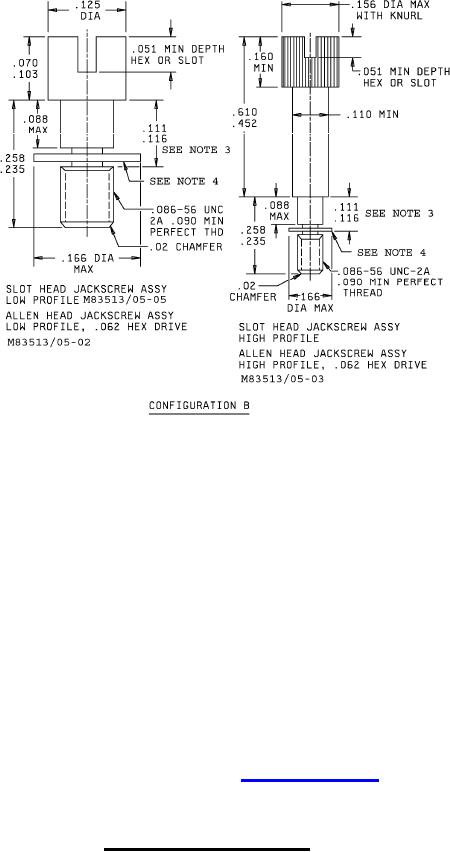

FIGURE 2. Dimensions and configurations - Continued.
3
