MIL-DTL-83517A
4.5.13 Radio frequency (RF) leakage (see 3.16). The connector under test shall be connected to a
mating connector and mounted to an appropriate test fixture (see 3.1). The assembly shall be as shown
on figure 3 and tested as shown on figure 4 (the procedure for determining the dimensions of the cavity in
figure 4 may be found in paragraph A.4.1 of the appendix). This test setup between 500 MHz and 7.5
GHz shall have a dynamic range from 20 dBm to better than 100 dBm or if not within this power range,
a difference of at least 90 dB. If 20dBm is the maximum power range, using a +20 dBm RF source with
30 dB attenuation including the isolator pad, an additional 30 dB range can be obtained.

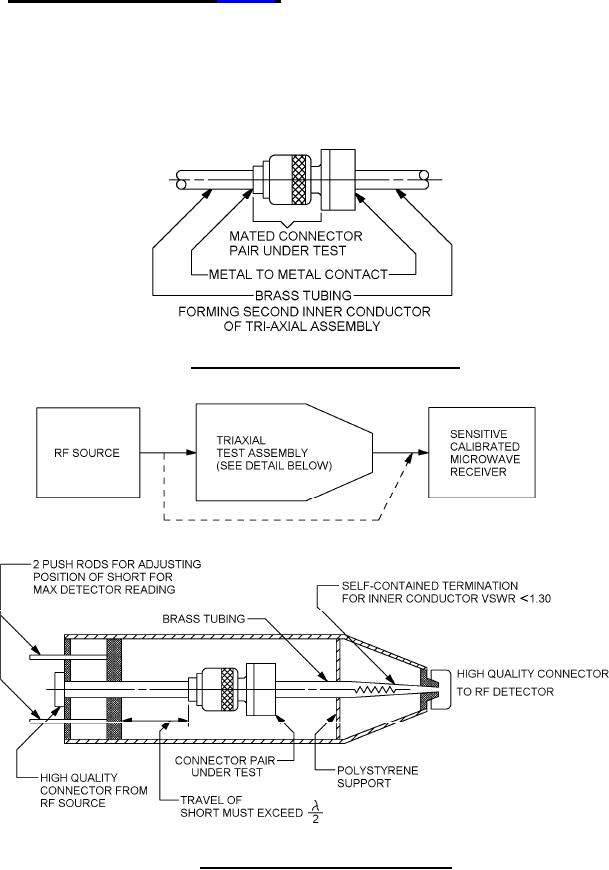

FIGURE 3. Connector assembly for RF leakage test.
FIGURE 4. Method of RF leakage measurements.
21
