MIL-PRF-39012/1H
Inches
mm
.007
0.18
.010
0.25
.032
0.81
.103
2.62
.524
13.31
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Three holes .027 inch (0.69 mm) minimum diameter, equally spaced, are required for safety wiring
after mating. Location on the coupling nut is optional.
4. Chamfer is optional, if chamfer is used put chamfer on a 30° maximum.
5. Dimension shall meet connector performance requirements.

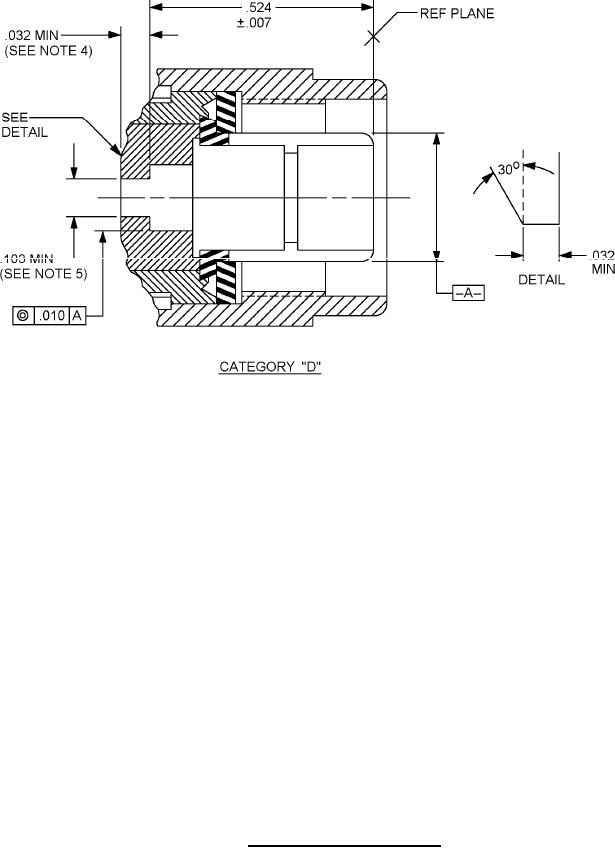

FIGURE 2. Category D captivation detail.
2
