MIL-PRF-39012/19H

Inches

.146

3.71

4.22

.166

8.46

.333

8.97

.353

10.85

.427

11.35

.447

.593

15.06

NOTES:

1. Dimensions ore in inches.

2. Metric equivalents are given for information only.

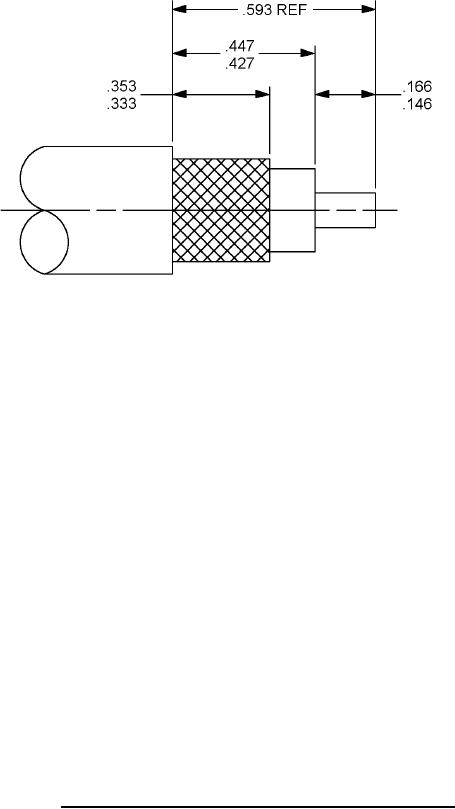

FIGURE 4. Cable stripping dimensions for field replaceable connectors.
