MIL-PRF-39012/2H

Inches

.007

0.18

.010

0.25

.032

0.81

.103

2.62

.278

7.06

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for information only.

3. Slot design optional.

4. Chamfer is optional.

5. Dimension shall meet connector performance requirements.

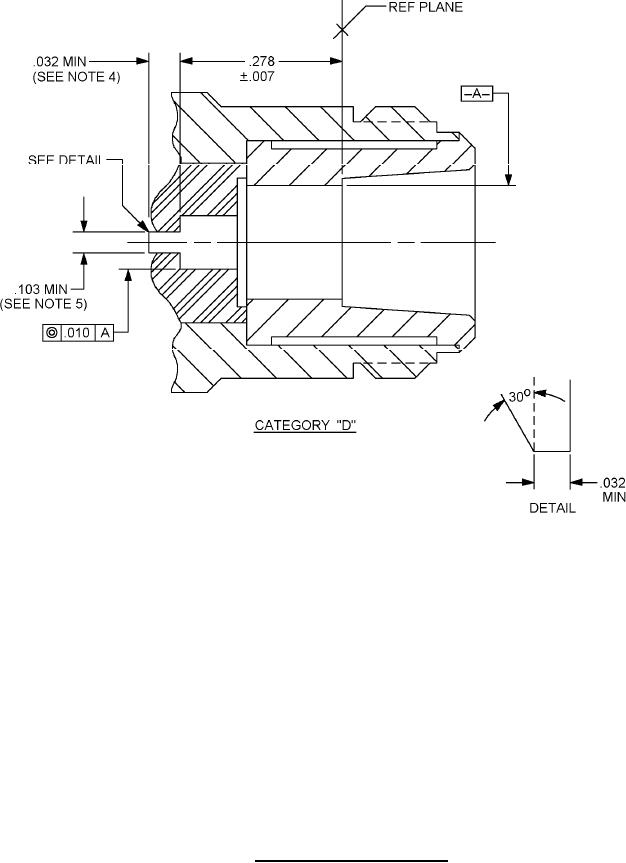

FIGURE 2. Category D captivation detail.
