MIL-PRF-39012/26H
Inches
mm
.002
0.05
.010
0.25
.015
0.38
.036
0.91
.077
1.96
.267
6.78
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Three holes .027 (0.69 mm) minimum diameter equally spaced for safety wiring. Location on
coupling nut optional.
4. Chamfer is optional.
5. All undimensioned pictorial configurations are for reference purposes only.

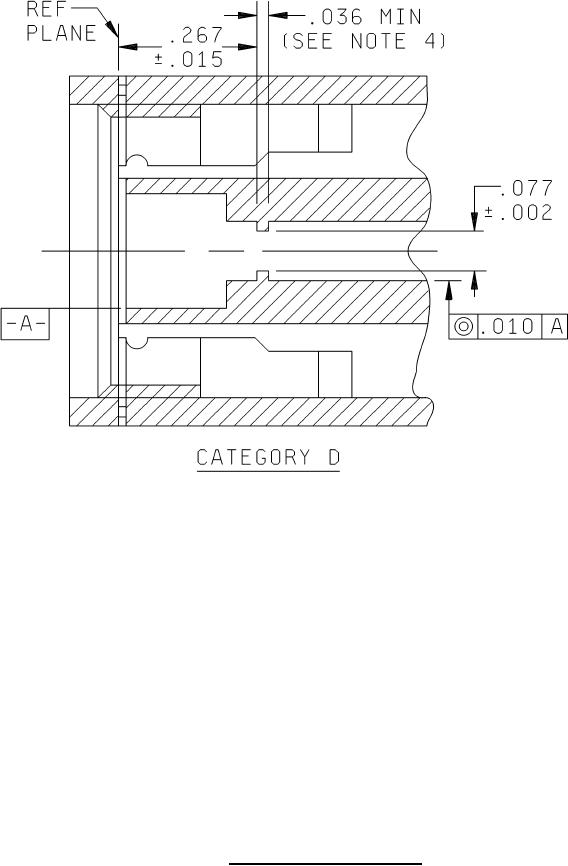

FIGURE 2. Category D captivation detail.
