INCH-POUND
MIL-PRF-39012/31D
24 January 2014
SUPERSEDING
MIL-PRF-39012/31C
12 September 2013
PERFORMANCE SPECIFICATION SHEET
CONNECTORS, COAXIAL, RADIO FREQUENCY
(SERIES TNC (UNCABLED RECEPTACLES, SOCKET, JAM NUT MOUNTED, CLASS 2)
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall
consist of this specification sheet and MIL-PRF-39012.
Inches
mm
.022
0.56
.059
1.50
.063
1.60
.087
2.21
.099
2.51
.153
3.89
.156
3.96
.159
4.04
.181
4.60
.184
4.67
.187
4.75
.190
4.83
.368
9.35
.375
9.53
.380
9.65
.384
9.75
.429
10.90
.434
11.02
.4375
11.11
.439
11.15
.443
11.25
.470
11.94
.495
12.57
.505
12.83
.508
12.90
.515
13.08
.585
14.86
NOTES:
1. Dimensions are in inches.
2. For dimension A and B, see table I.
3. Metric equivalents are given for information only.
4. All undimensioned pictorial configurations are for reference purposes only.
5. Wrench flats to accommodate standard wrench opening per ASME B107.100.
6. Full threads to within .063 (1.60 mm) of shoulder; 1 1/2 maximum uneven threads to shoulder.
7. There shall be a solid barrier in the socket between the pin entry and the solder pocket to prevent
solder wicking.

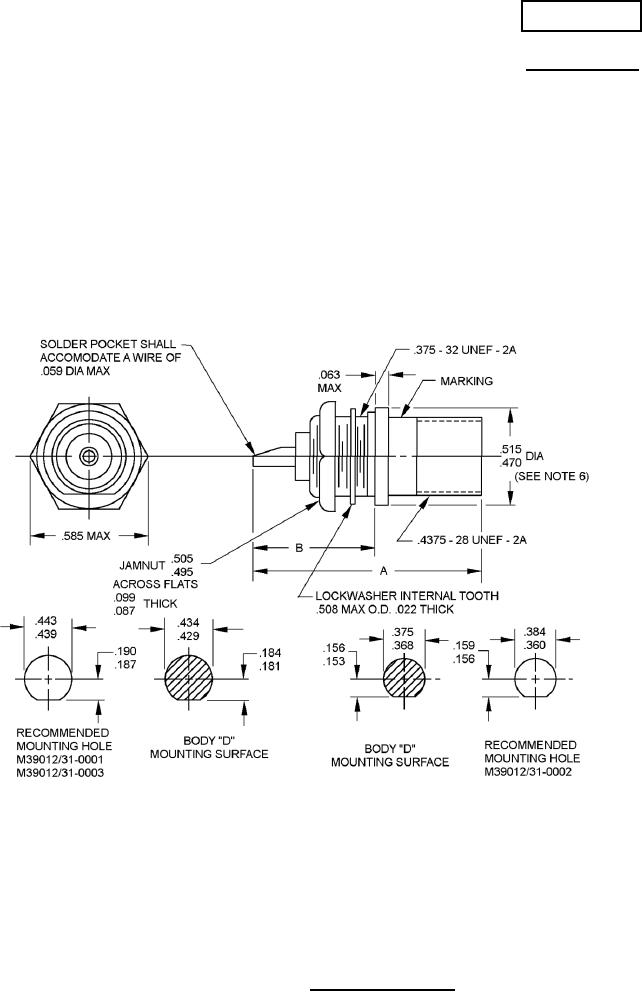

FIGURE 1. General configuration.
AMSC N/A
FSC 5935
