MIL-PRF-39012/31D
Dimensions in inches with metric
Ltr
equivalents (mm) in parentheses
Minimum
Maximum
A
.378 (9.60)
.381 (9.68)
B
.345 (8.76)
.356 (9.04)
C
.327 (8.31)
.333 (8.46)
D
.319 (8.10)
.321 (8.15)
E
.186 (4.72)
F
.068 (1.73)
.088 (2.24)
G
.329 (8.36)
.333 (8.46)
H
.187 (4.75)
J
.186 (4.72)
.206 (5.23)
K
.006 (.15)
L
.195 (4.95)
M
.081 (2.06)
.087 (2.21)
N
.256 (6.50)
P
.188 (4.78)
.208 (5.28)
R
.415 (10.56)
S
.015 (.38)
.030 (.76)
NOTES:
1. Metric equivalents are given for general information only.
2. All undimensioned pictorial configurations are for reference purposes only.
3. N dimension applies to that portion (if applicable) of the dielectric which protrudes beyond the metal
shoulder (or reference plane) by dimension K.

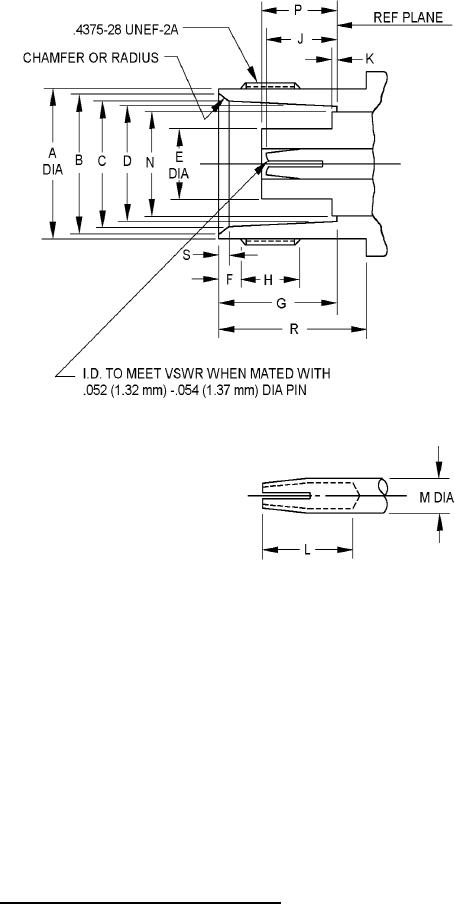

FIGURE 2. Mating dimensions for socket terminations.
2
