MIL-STD-1632 Insert Arrangements For Mil-Dtl-28804 High Density, Rectangular, Electrical ConnectorsThis standard covers insert arrangements for use with MIL-DTL-28804 high density rectangular electric connectors. It is used to control the dimensions and configuration of insert patterns and the contact sizes.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12


MIL-STD-16328


SHELL SIZE 10



Inches

mm

.073

1.85

.146

3.71

.168

4.27

.210

5.33

.252

6.40

.294

7.47

.336

8.53

,378

9.60

.420

10.67

.462

11.73



Arrangement number

Number

of contacts


Size contact

1

38

22

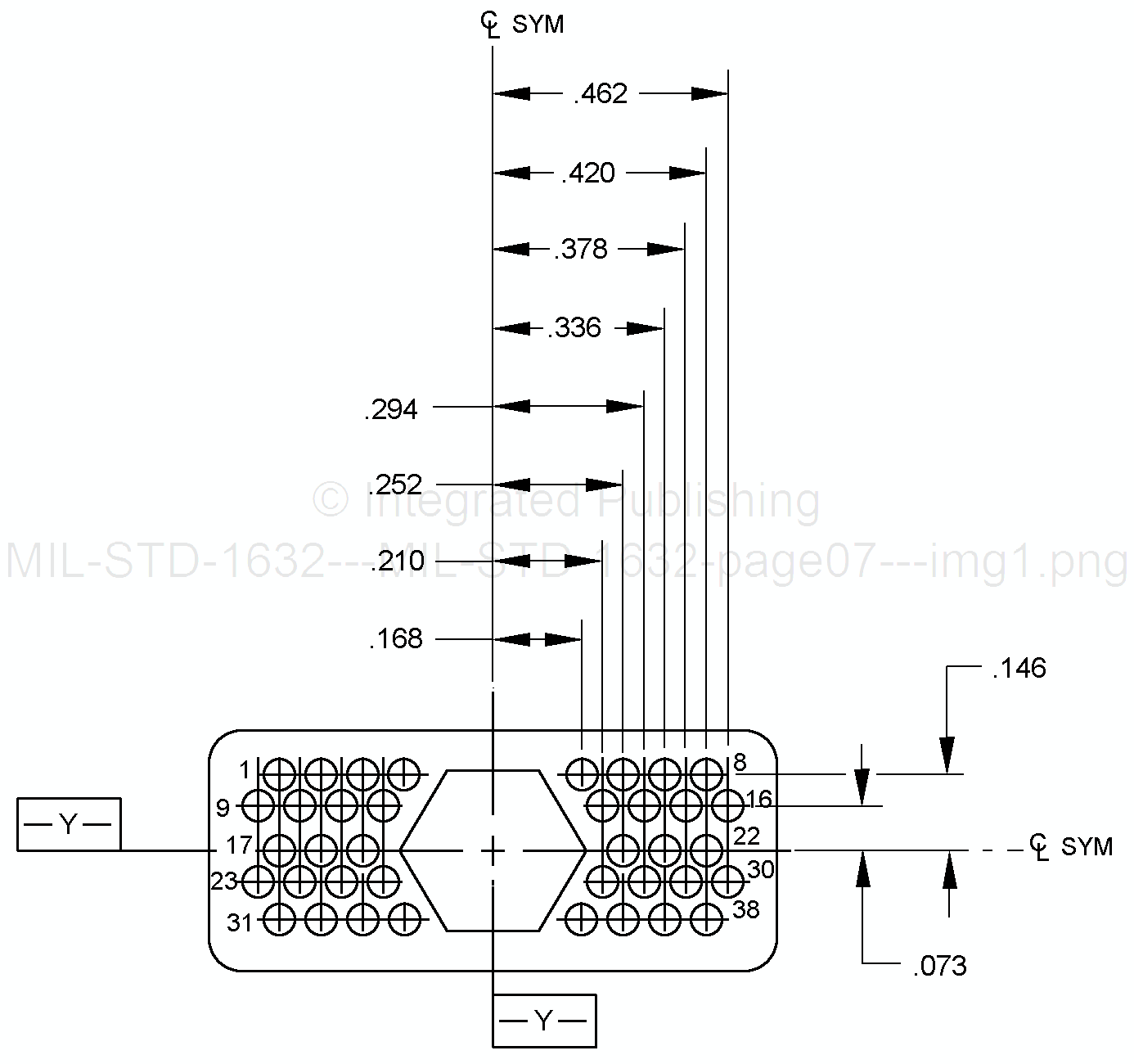

FIGURE 2.  Dimensions and configurations - Continued.
