MIL-STD-1632 Insert Arrangements For Mil-Dtl-28804 High Density, Rectangular, Electrical ConnectorsThis standard covers insert arrangements for use with MIL-DTL-28804 high density rectangular electric connectors. It is used to control the dimensions and configuration of insert patterns and the contact sizes.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12

Inches

mm

Inches

mm

Inches

mm

.042

1.07

.504

12.80

1.050

26.67

.073

1.85

.546

13.87

1.092

27.74

.126

3.20

.588

14.93

1.134

28.80

.146

3.71

.630

16.00

1.176

29.87

.168

4.27

.672

17.07

1.218

30.94

.210

5.33

.714

18.13

1.260

32.00

.219

5.56

.756

19.20

1.302

33.07

.252

6.40

.798

20.27

1.344

34.14

.294

7.47

.840

21.34

1.386

35.20

.336

8.53

.882

22.40

1.428

36.27

,378

9.60

.924

23.47

1.470

37.34

.420

10.67

.966

24.54

1.512

38.40

.462

11.73

1.008

25.60

1.554

39.47

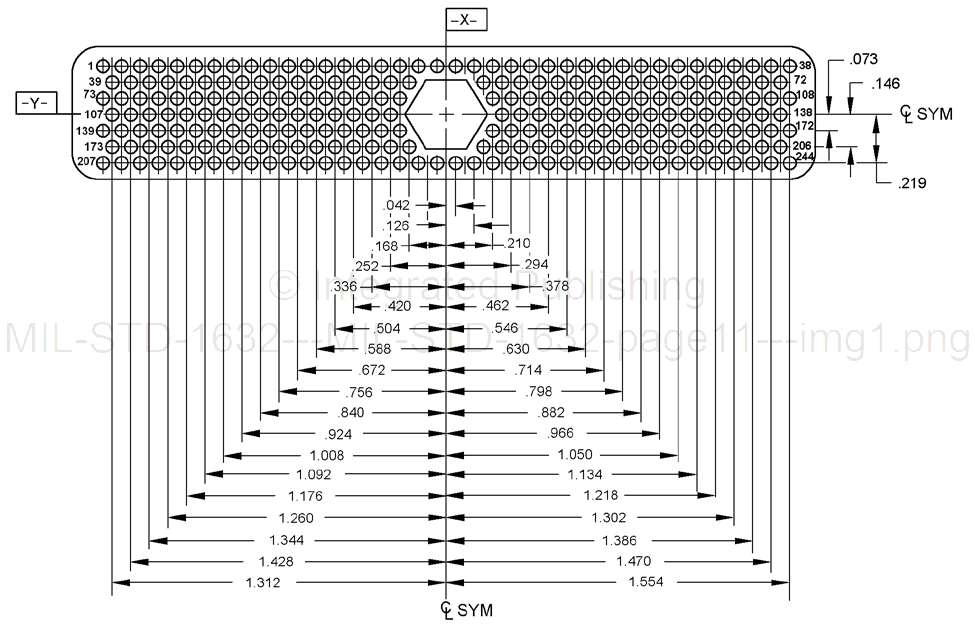

Arrangement number

Number

of contacts

Size contact

1

244

22
