MIL-STD-1632 Insert Arrangements For Mil-Dtl-28804 High Density, Rectangular, Electrical ConnectorsThis standard covers insert arrangements for use with MIL-DTL-28804 high density rectangular electric connectors. It is used to control the dimensions and configuration of insert patterns and the contact sizes.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12


MIL-STD-16328


SHELL SIZE 14



Arrangement number

Number

of contacts


Size contact

1

108

22

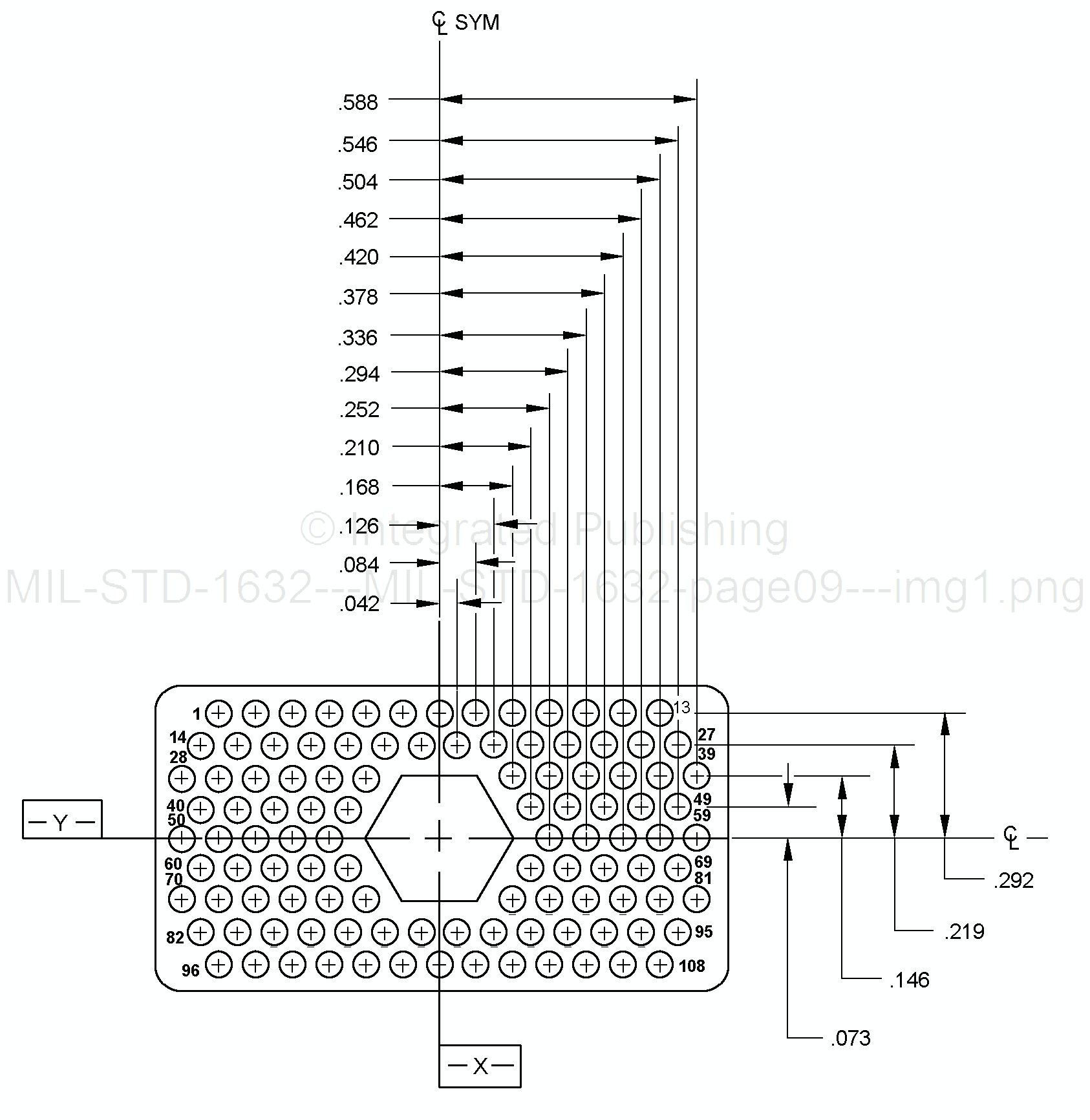

FIGURE 4.  Dimensions and configurations - Continued.
