DETAIL SPECIFICATION SHEET
INCH-POUND
MS14055J
1 April 2009 SUPERSEDING MS14055H
26 October 2005
INSERT ARRANGEMENTS, ELECTRICAL CONNECTOR, SIZE 44, CLASS L, 100 AMPS
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-22992.
NOTES:
1. Dimensions are in inches. Metric equivalents are given for information only. Unless otherwise specified, tolerance is ± .002 (.05 mm).
2. Unless otherwise specified, front face of pin insert pattern is shown. Socket inserts are the reverse.
3. -02-Cable IPCEA 2-NO 2 conductor round type W, 0 - 600 volts.
4. -03-Cable-C0-02-HDF (2/1) 1385 in accordance with MIL-DTL-3432.
5. Mark 44-02 on 44-03 insert. Trademark and 44-( ) shall appear in available space. Contact identifying letter shall be located so as to identify relative contact.
6. Only the pin contact is lengthened and has the N (neutral) designation. The mating socket contact is the same as the power contact.
7. The contact position labeled (G) in the insert arrangement contains the 1/0N (neutral) size pin contact that is connected to the shell to form a grounding pin contact.

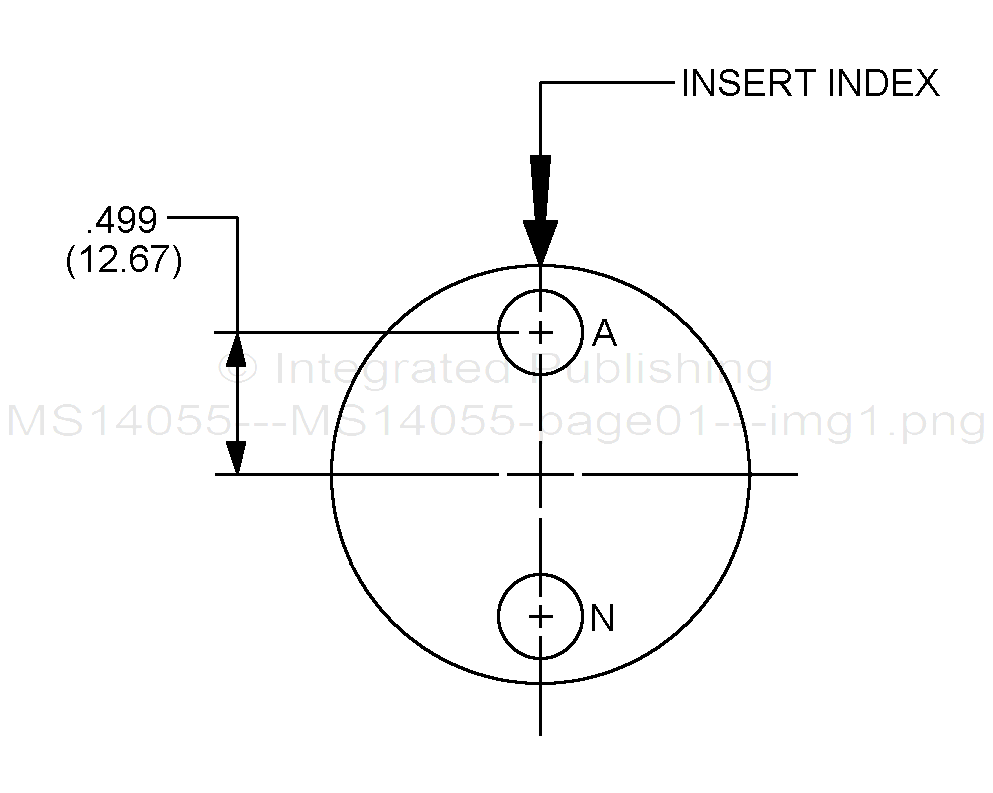

FIGURE 1. 28 volt DC two wire -02 and -03 insert arrangements, service D.
AMSC N/A FSC 5935
