MS14055J
Quantity |
Contact |
Size |
Socket SAE-AS39029/49- |
Pin SAE-AS39029/48- |
2 |
A, B |
1/0 |
333 |
323 |
1 |
N |
1/0N |
333 (see note 5) |
324 |
3 |
G1, G2, G3 |
6G |
330 |
319 |
NOTES:
1. Dimensions are in inches. Metric equivalents are given for information only. Unless otherwise specified, tolerance is ± .002 (.05 mm).
2. Unless otherwise specified, front face of pin insert pattern is shown. Socket inserts are the reverse.
3. -06-Cable IPCEA 3-NO 2 conductor round type G, 0 - 600 volts.
4. Mark 44-06 on insert. Trademark and 44-06 shall appear in available space. Contact identifying letter shall be located so as identify relative contact.
5. Only the pin contact is lengthened and has the N (neutral) designation. The mating socket contact is the same as the power contact.
6. The contact position labeled (G) in the insert arrangement contains the 1/0N (neutral) size pin contact that is connected to the shell to form a grounding pin contact.

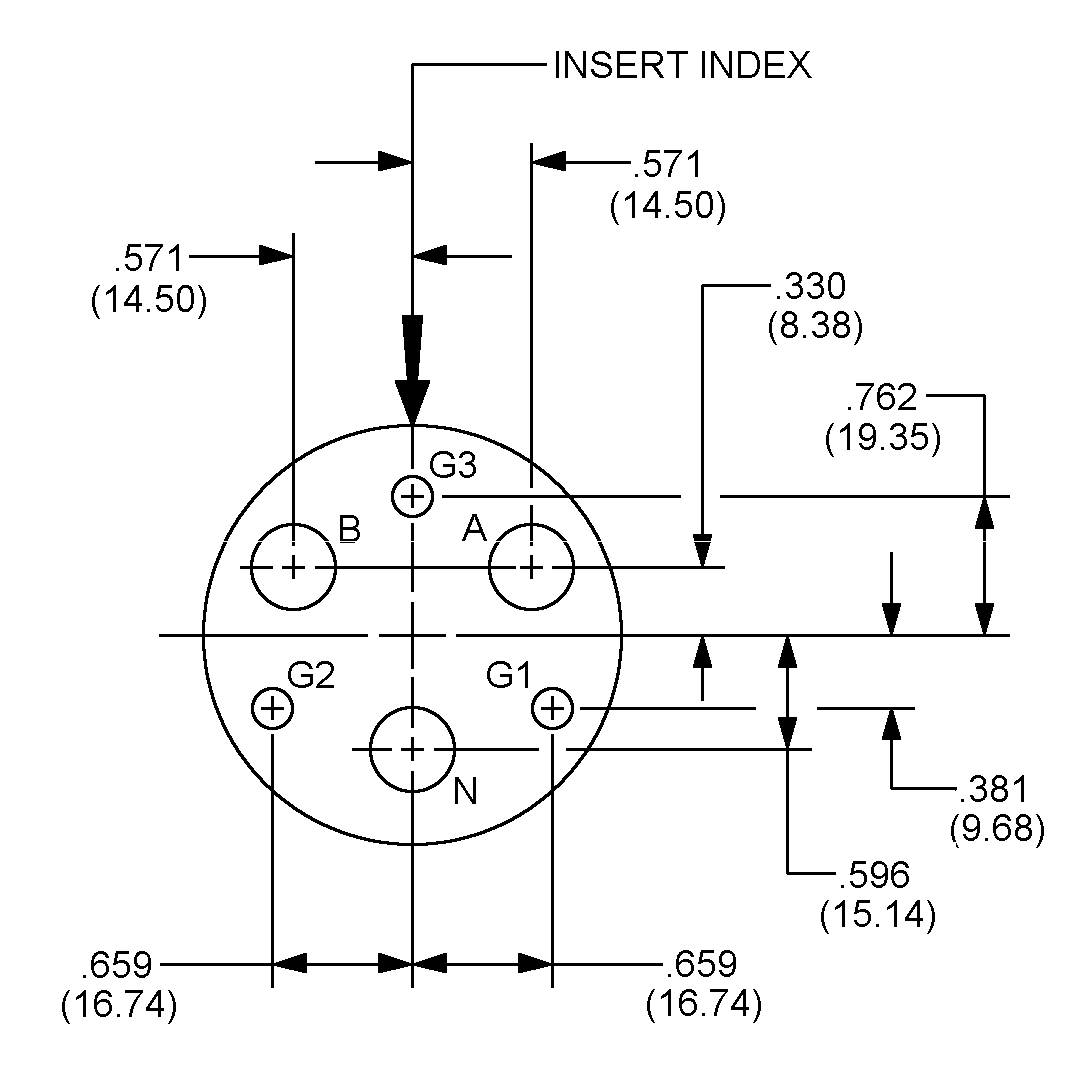

FIGURE 3. AC single phase three wire grounding, -06 insert arrangements, service D.
