MS14055J
Quantity |
Contact |
Size |
Socket SAE-AS39029/49- |
Pin SAE-AS39029/48- |
3 |
A, B, C |
1/0 |
333 |
323 |
1 |
G |
1/0N |
333 (see note 9) |
324 |
NOTES:
1. Dimensions are in inches. Metric equivalents given for information only. Unless otherwise specified, tolerance is ± .002 (.05 mm).
2. Unless otherwise specified, front face of pin insert pattern is shown. Socket inserts are the reverse.
3. -50-four each NO 1 wire (receptacles only).
4. -51-Cable-lPCEA 4-NO 1 conductor round type W, 0 - 600 volts, 1.68 inch OD.
5. -52-Cable-lPCEA 4-NO 2 conductor round type W, 0 - 600 volts, 1.48 inch OD.
6. -56-Cable-lPCEA 4-NO 6 conductor round type W, 0 - 600 volts, 1.10 inch OD.
7. For Navy ground support equipment use only.
8. Mark 44-50 on 44-51 insert, 44-52 on 44-56 insert. Trademark and 44-( ) shall appear in available space. Contact identifying letter shall be located so as to identify relative contact.
9. Only the pin contact is lengthened and has the N (neutral) designation. The mating socket contact is the same as the power contact.
10. The contact position labeled (G) in the insert arrangement contains the 1/0N (neutral) size pin contact that is connected to the shell to form a grounding pin contact.

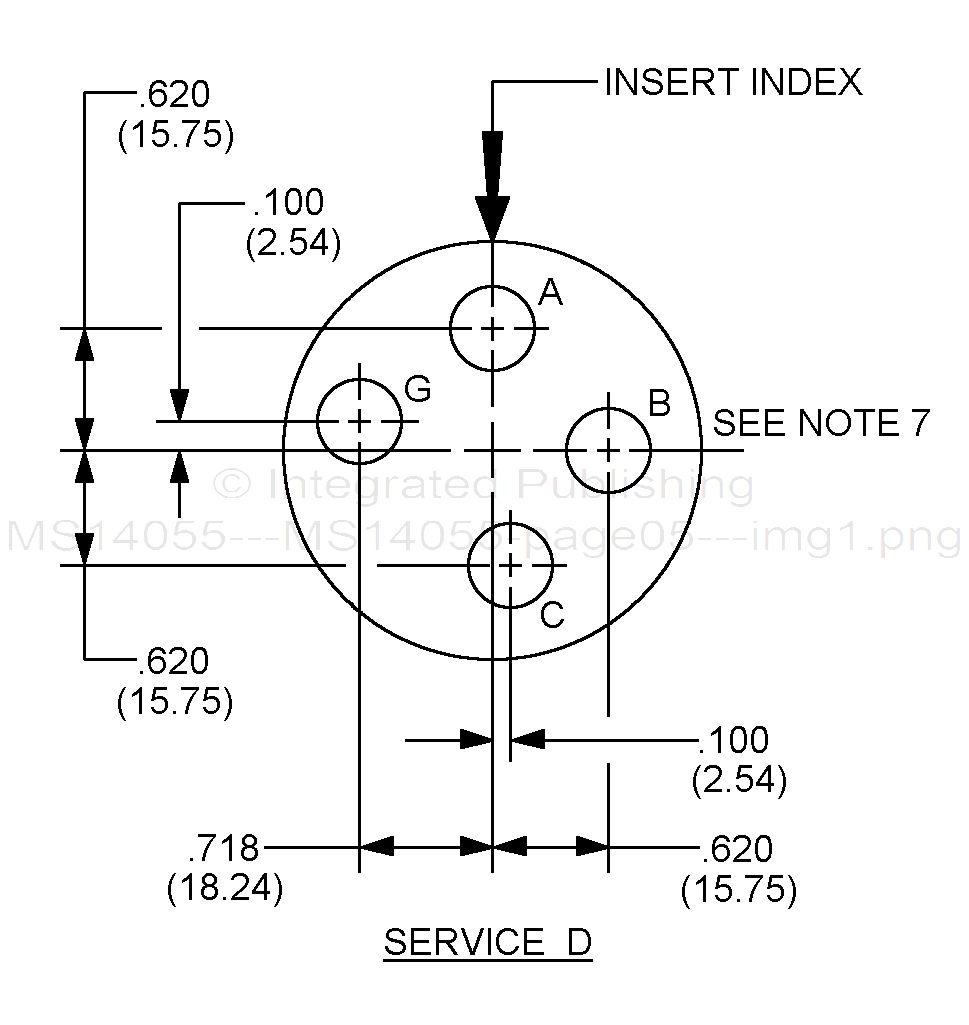

FlGURE 5. AC three phase three wire grounding, -50, -51, -52 and -56 insert arrangements, service D.
5
