MS14055J
NOTES:
1. For use with connectors under MS90556 and MS90558 utilizing pin contacts and alternate (Z) keying.
2. Front face of pin insert shown.

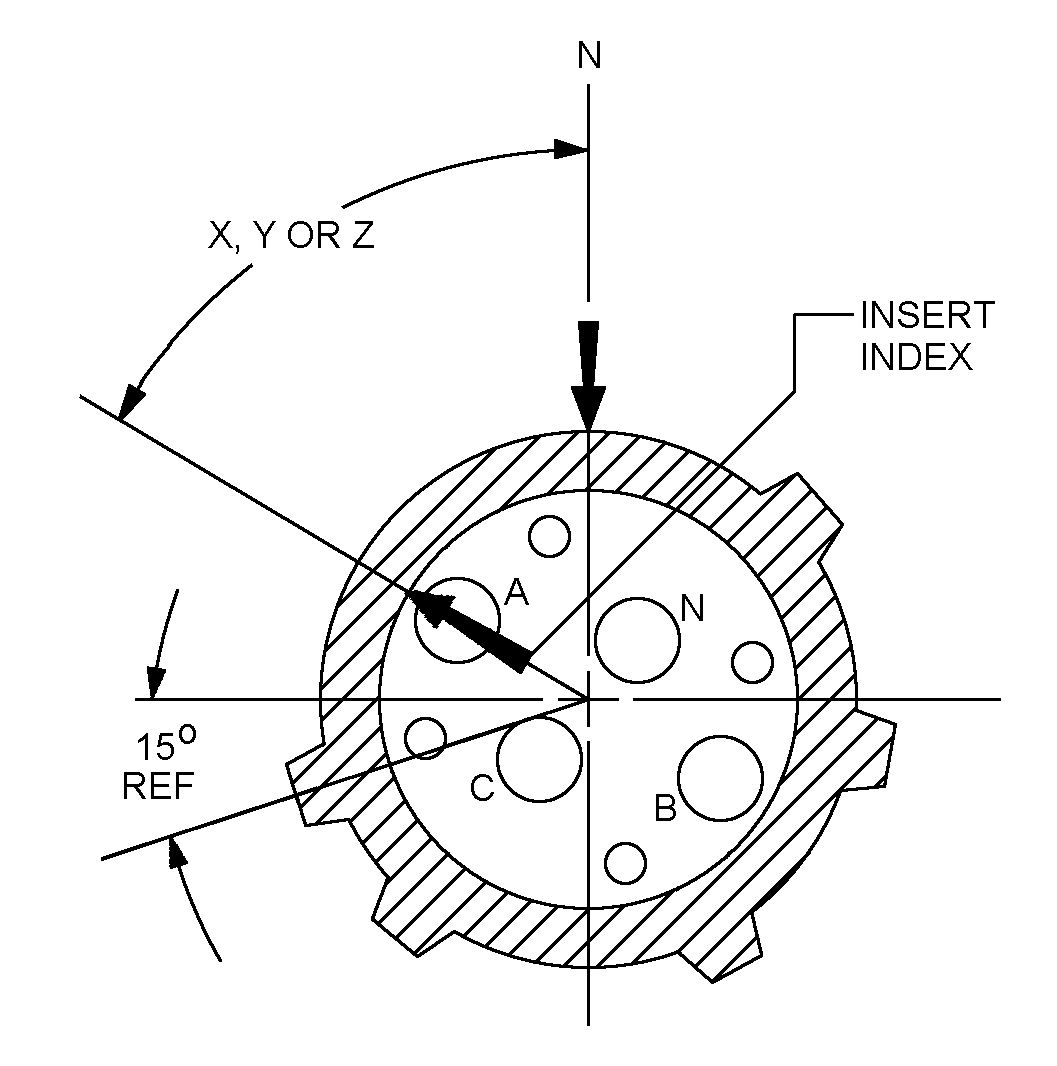

FIGURE 10. Socket contact pattern and polarization, insert in alternate position (400 Hz power only).
10
