DETAIL SPECIFICATION SHEET
INCH-POUND MS14057H
1 April 2009
SUPERSEDING MS14057G
26 October 2005
INSERT ARRANGEMENTS, ELECTRICAL CONNECTOR, SIZE 52, CLASS L, 200 AMPS
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-22992.
Quantity |
Contact |
Size |
Socket SAE-AS39029/49- |
Pin SAE-AS39029/48- |
1 |
A |
4/0 |
335 |
327 |
1 |
N |
4/0N |
335 (see note 5) |
328 |
NOTES:
1. Dimensions are in inches. Metric equivalents are given for information only. Unless otherwise specified, tolerance is ± .002 (.05 mm).
2. Unless otherwise specified, front face of pin insert pattern is shown. Socket inserts are the reverse.
3. -02-ICEA 2-NO 2/0 conductor round type W cable, 0 - 600 volts.
4. Trademark and 52-( ) shall appear in available space. Contact identifying letter shall be located so as to identify relative contact.
5. Only the pin contact is lengthened and has the N (neutral) designation. The mating socket contact is the same as the power contact.

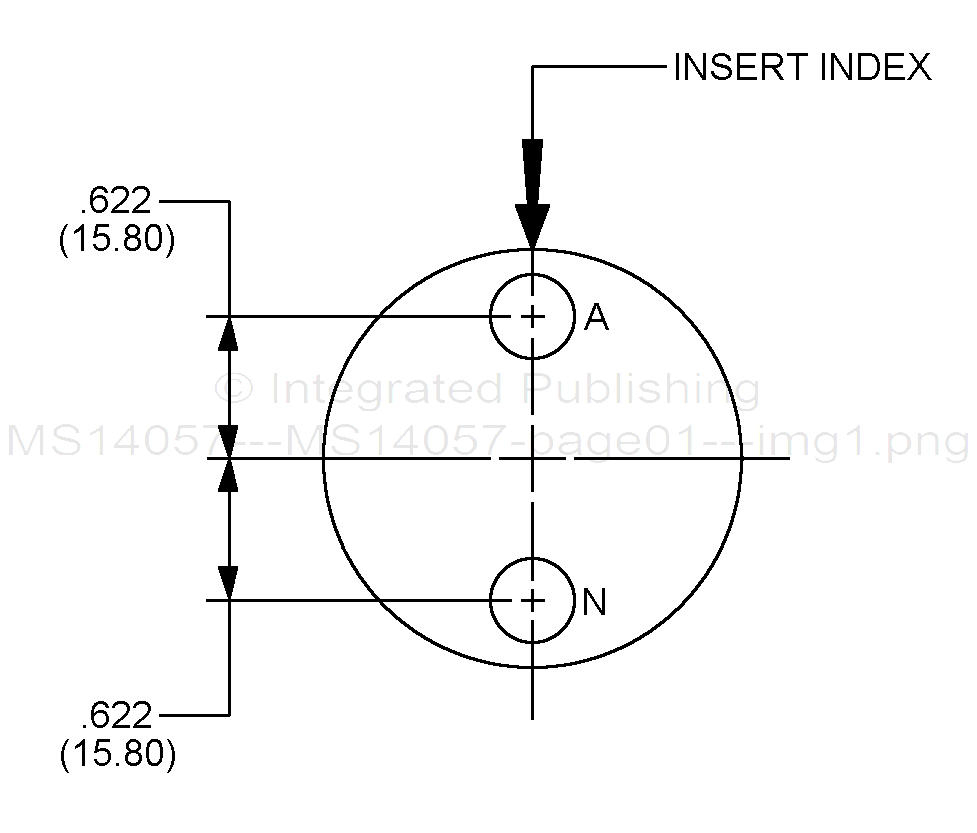

FIGURE 1. 28 volt DC two wire, -02 insert arrangement, service D.
