MS14057H
Quantity |
Contact |
Size |
Socket SAE-AS39029/49- |
Pin SAE-AS39029/48- |
3 |
A, B, C |
4/0 |
335 |
327 |
1 |
N |
4/0N |
335 (see note 6) |
328 |
4 |
G1, G2, G3, G4 |
4G |
332 |
322 |
NOTES:
1. Dimensions are in inches. Metric equivalents are given for information only. Unless otherwise specified, tolerance is ± .002 (.05 mm).
2. Unless otherwise specified, front face of pin insert pattern is shown. Socket inserts are the reverse.
3. -12-Cable ICEA 4-NO 4/0 conductor round type G cable, 0 - 600 volts.
4. -13-Cable-C0-04-HDE (4/0000) 2380 in accordance with MIL-DTL-3432.
5. Mark 52-12 on 52-13 insert. Trademark and 52-( ) shall appear in available space. Contact identifying letter shall be located so as to identify relative contact.
6. Only the pin contact is lengthened and has the N (neutral) designation. The mating socket contact is the same as the power contact.

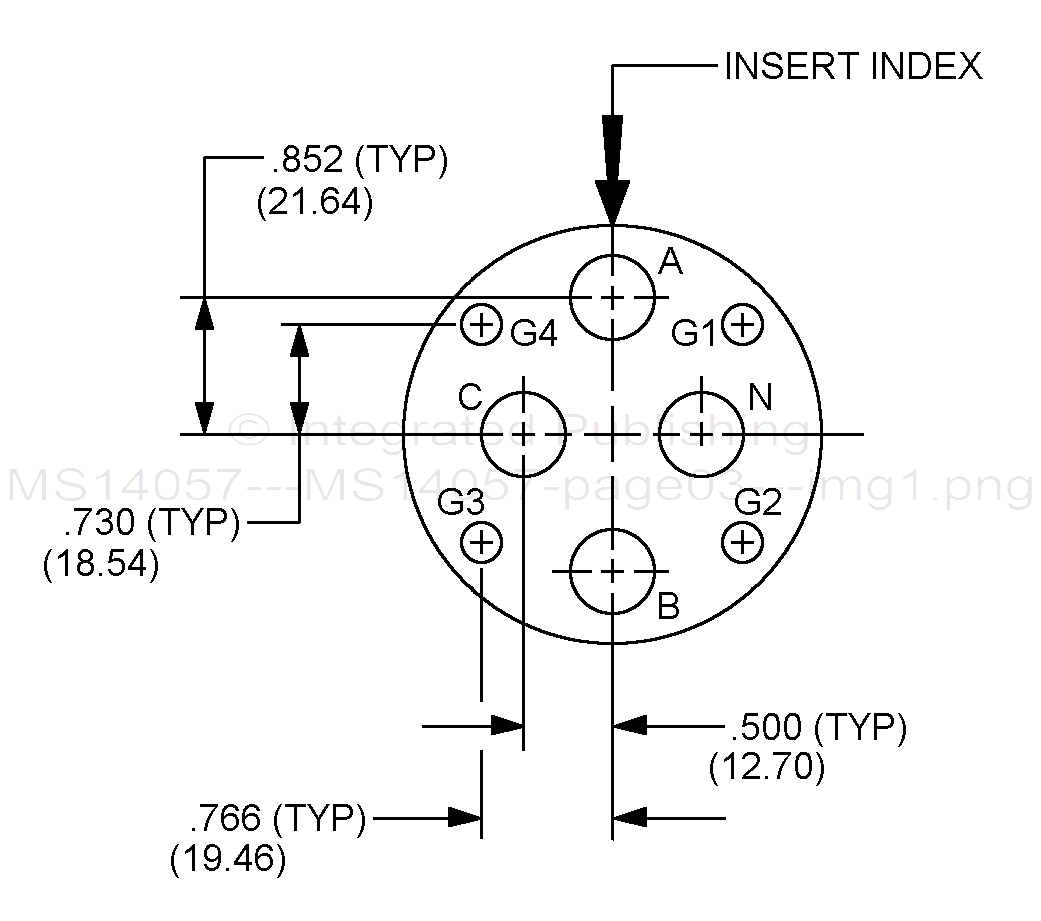

FIGURE 3. AC three phase four wire grounding, -12 and -13 insert arrangements, service D.
3
