MS14057H
NOTES:
1. For use with connectors under MS90555 and MS90557 utilizing socket contacts and alternate (W) keying.
2. Front face of socket insert shown.

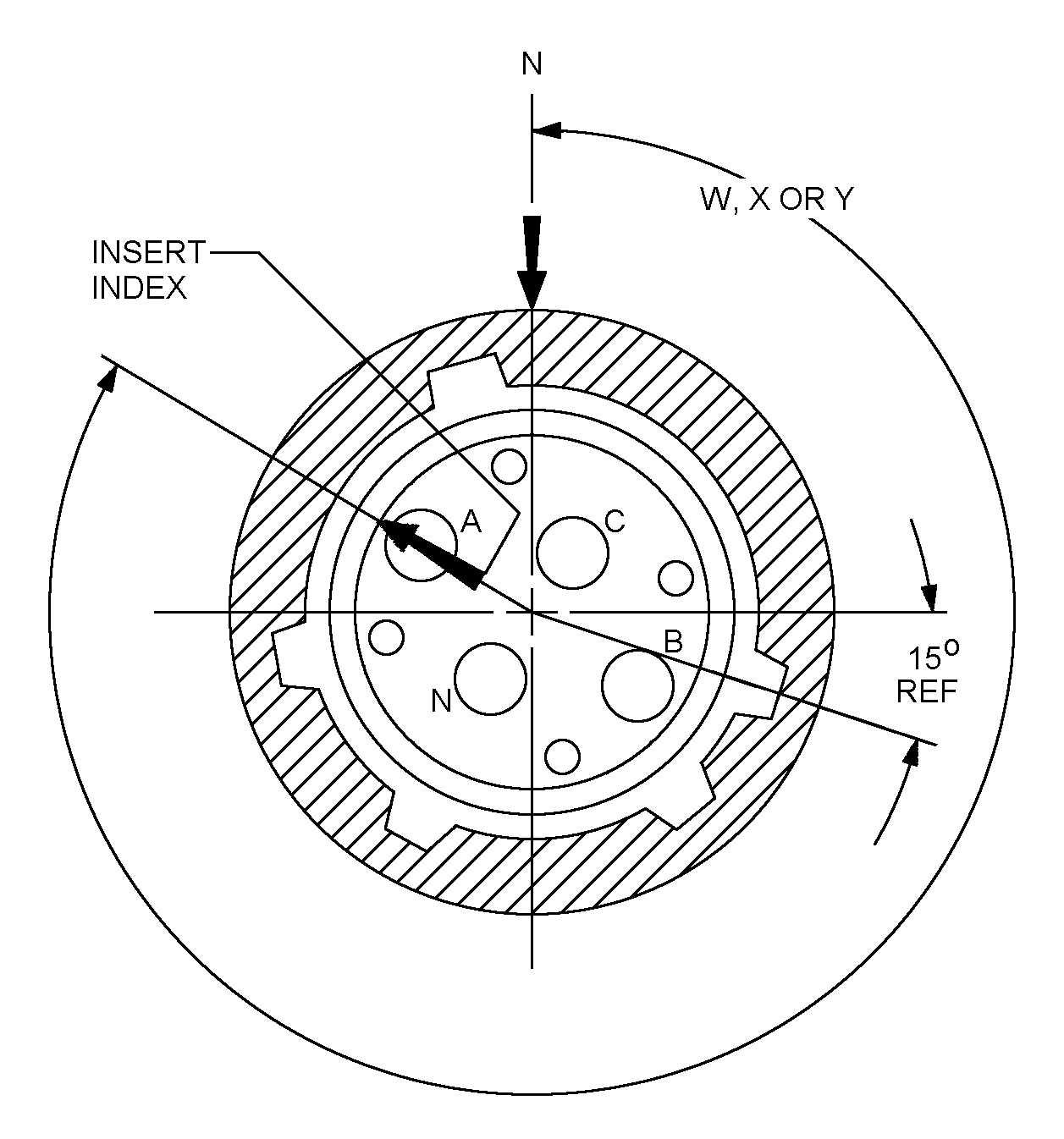

FIGURE 6. Socket contact pattern and polarization, insert in alternate position (400 Hz power only).
6
