MS14057H
NOTES:
1. For use with connectors under MS90556 and MS90558 utilizing pin contacts and alternate (W) keying.
2. Front face of pin insert shown.

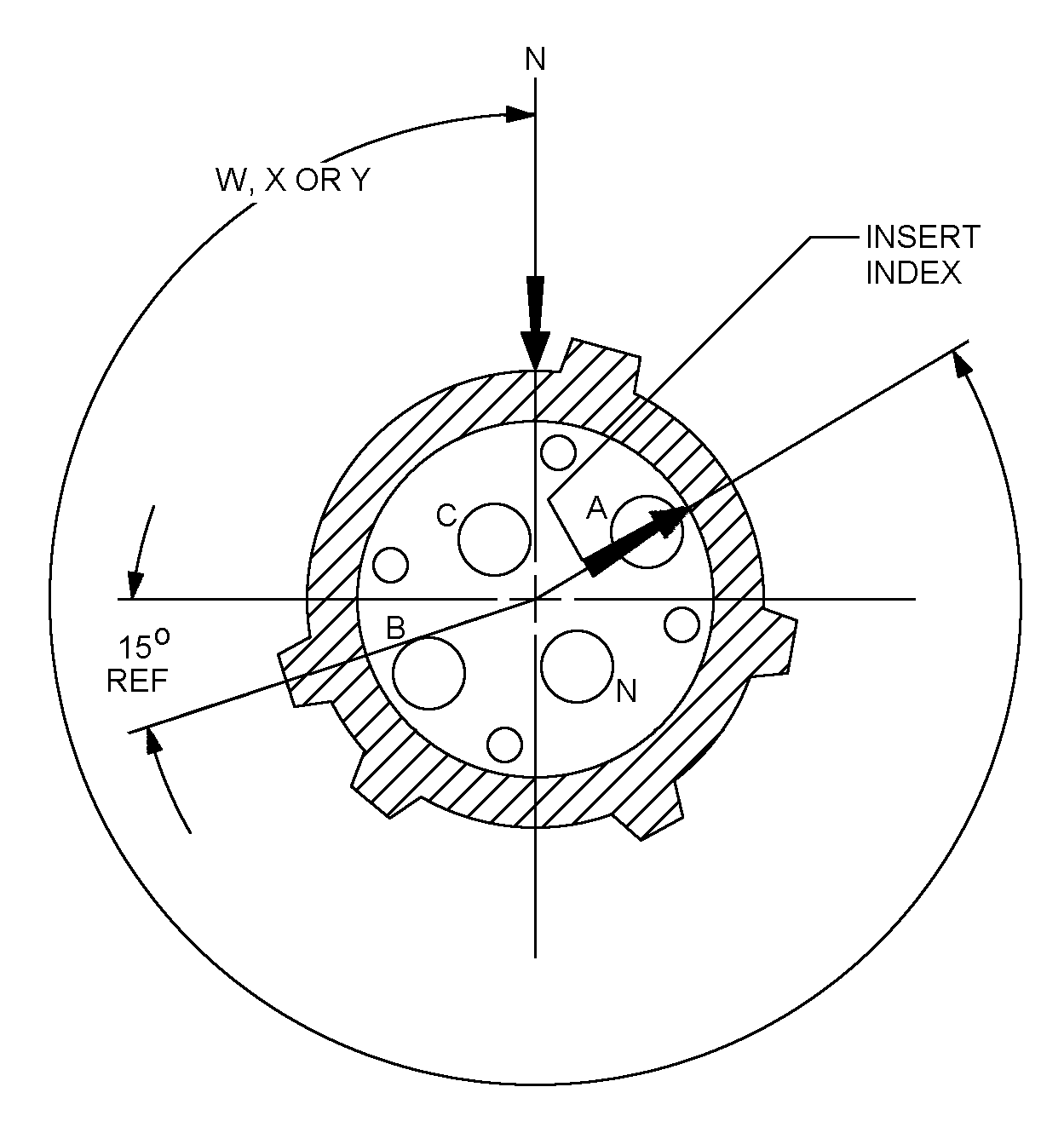

FIGURE 8. Socket contact pattern and polarization, insert in alternate position (400 Hz power only).
8
