MS27488N

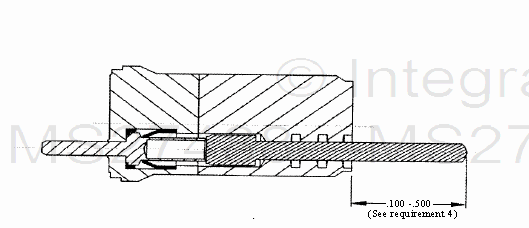

FIGURE 2. Sealing plug with unwired contact.
TABLE I. Sealing plug dimensions and application information.
Dash no. |
Color code |
A dia. 1/ |
B dia. 1/ |
C dim. 1/ |
Connector contact size |
-22-2 |
Black |
0.066 |
0.045 |
0.500 |
23-22 2/ |
0.058 |
0.038 |
0.438 |
|||
-20-2 |
Red |
0.090 |
0.058 |
0.805 |
20 21 |
0.080 |
0.048 |
0.755 |
|||
-16-2 |
Green |
0.130 |
0.079 |
0.872 |
16 2/ |
0.120 |
0.069 |
0.822 |
|||
-12-2 |
Orange |
0.170 |
0.125 |
0.841 |
12 2/ |
0.160 |
0.115 |
0.791 |
|||
-16-3 |
Blue |
0.130 |
0.079 |
1.472 |
16 (5015) 3/ |
0.120 |
0.069 |
1.422 |
|||
-12-3 |
Yellow |
0.170 |
0.125 |
1.441 |
12 (5015) 31 |
0.160 |
0.115 |
1.391 |
|||
-8-3 |
Red |
0.315 |
0.175 |
1.189 |
8 (5015) 3/ |
0.305 |
0.165 |
1.139 |
|||
-4-3 |
Blue |
0.414 |
0.283 |
1.189 |
4 (5015) 3/ |
0.404 |
0.273 |
1.139 |
|||
-0-3 |
Yellow |
0.606 |
0.431 |
1.071 |
0 (5015) 3/, 4/ |
0.596 |
0.416 |
1.021 |
NOTES:
1/ Dimensions are in inches.
2/ Sealing plug is for use in all connectors and components listed in table II, with the exception of MIL-DTL-5015 connectors.
3/ Sealing plug is for use in MIL-DTL-5015 connectors. See figure 3.
4/ See figure 3.
