MS3114L
4 June 2009 SUPERSEDING MS3114K
6 June 2003
DETAIL SPECIFICATION SHEET
CONNECTORS, RECEPTACLE, ELECTRICAL, SERIES 1, SOLDER TYPE, JAM NUT MOUNTING, BAYONET COUPLING, CLASSES E, F, H AND P
Inactive for new design after 10 June 1993.
For new design, use MS3474 for classes E, F, and P.
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-26482.
STYLE P, PIN INSERT

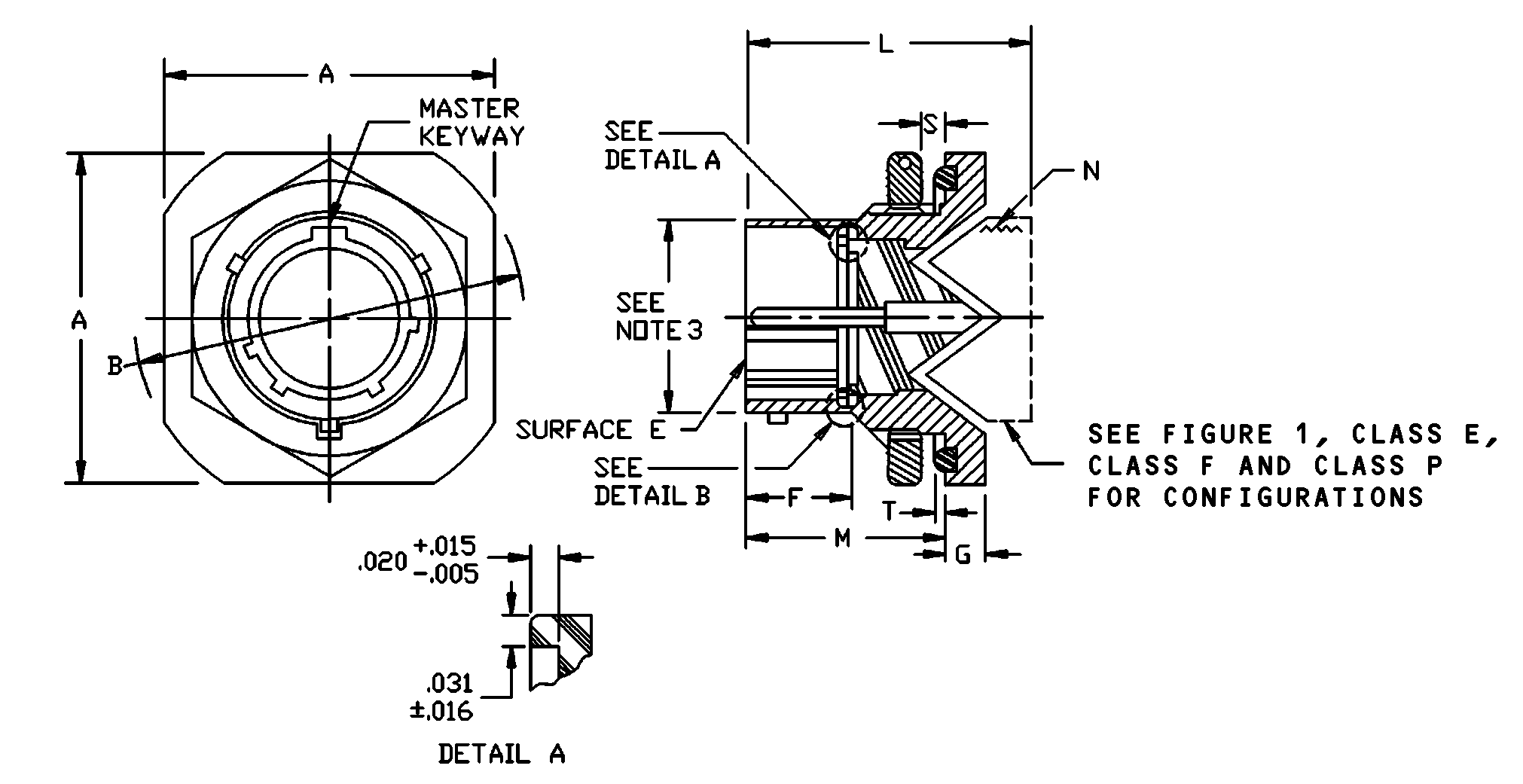

FIGURE 1. Dimensions and configurations for classes E, F and P.
AMSC N/A FSC 5935
