MS3114L
CLASS E
DIMENSIONS FOR CLASS E
Shell size |
L Max overall length |
x dia min ID |
y dia max OD |
8 |
1.344 (34.14) |
.269 (6.83) |
.750 (19.05) |
10 |
.359 (9.12) |
.875 (22.23) |
|
12 |
.469 (11.91) |
1.000 (25.40) |
|
14 |
.589 (14.96) |
1.125 (28.58) |
|
16 |
.717 (18.21) |
1.250 (31.75) |
|
18 |
.779 (19.79) |
1.375 (34.93) |
|
20 |
1.594 (40.49) |
.901 (22.89) |
1.531 (38.89) |
22 |
1.009 (25.63) |
1.656 (42.06) |
|
24 |
1.641 (41.68) |
1.123 (28.52) |
1.781 (45.24) |

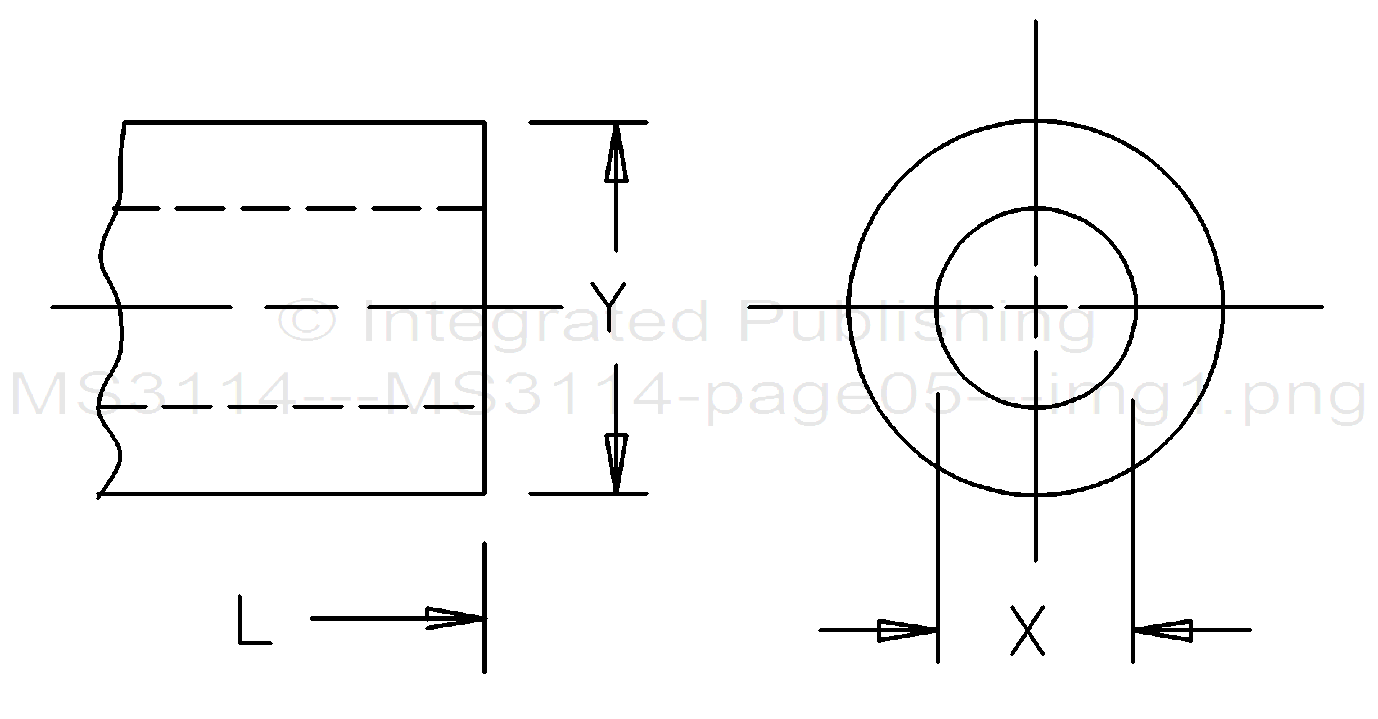

FIGURE 1. Dimensions and configurations for classes E, F and P - Continued.
