INCH-POUND
MS33695A
9 July 2004
SUPERSEDING MS33695
17 December 1958
DETAIL SPECIFICATION SHEET CONTACTS, VIDEO COAXIAL CONNECTOR
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet.
NOTES:
1. Dimensions are in inches.
2. Unless otherwise specified, tolerance shall be ± .016 (.406 mm).

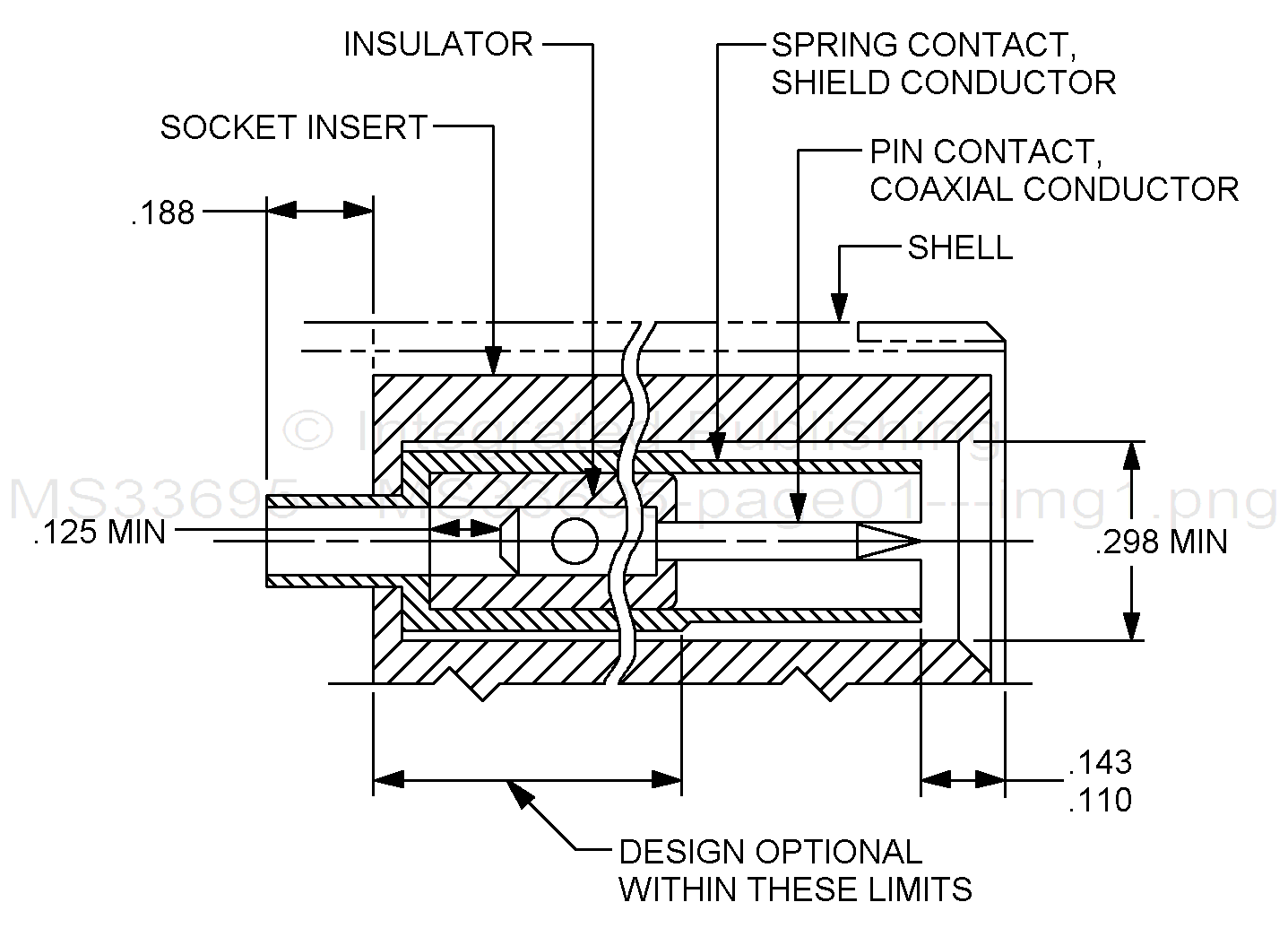

FIGURE 1. Pin contact assembly, coaxial connector.
AMSC N/A FSC 5935
