MS33695A
Inches |
mm |
Inches |
mm |
.003 |
.076 |
.217 |
5.512 |
.016 |
.406 |
.221 |
5.613 |
.030 |
.762 |
.248 |
6.300 |
.125 |
3.175 |
.252 |
6.401 |
.129 |
3.276 |
.391 |
9.931 |
.165 |
3.276 |
.422 |
10.720 |

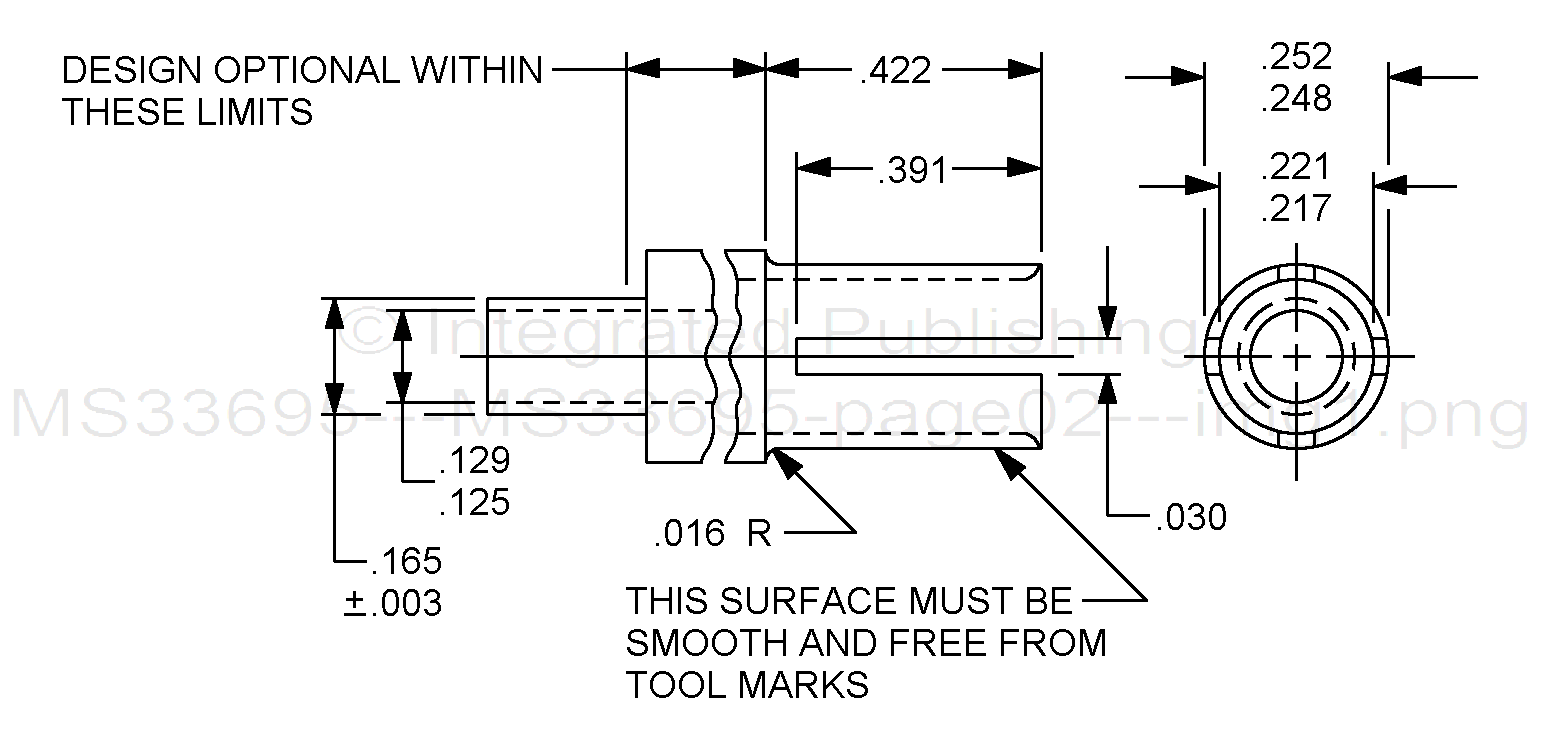

FIGURE 2. Spring contact, shield conductor.
Inches |
mm |
.070 |
1.778 |
.124 |
3.149 |
.127 |
3.226 |
.213 |
5.410 |
.216 |
5.486 |
FIGURE 3. Insulator.
2
