MS33695A
Inches |
mm |
Inches |
mm |
.062 |
1.575 |
.188 |
4.775 |
.085 |
2.159 |
.228 |
5.791 |
.094 |
2.387 |
.231 |
5.867 |
.124 |
3.149 |
.438 |
11.125 |
.127 |
3.226 |
FIGURE 7. Socket, insulator.
Inches |
mm |
Inches |
mm |
.018 |
.457 |
.119 |
3.022 |
.043 |
1.092 |
.121 |
3.073 |
.050 |
1.270 |
.125 |
3.175 |
.057 |
1.448 |
.156 |
3.962 |
.070 |
1.778 |
.375 |
9.525 |
.072 |
1.828 |

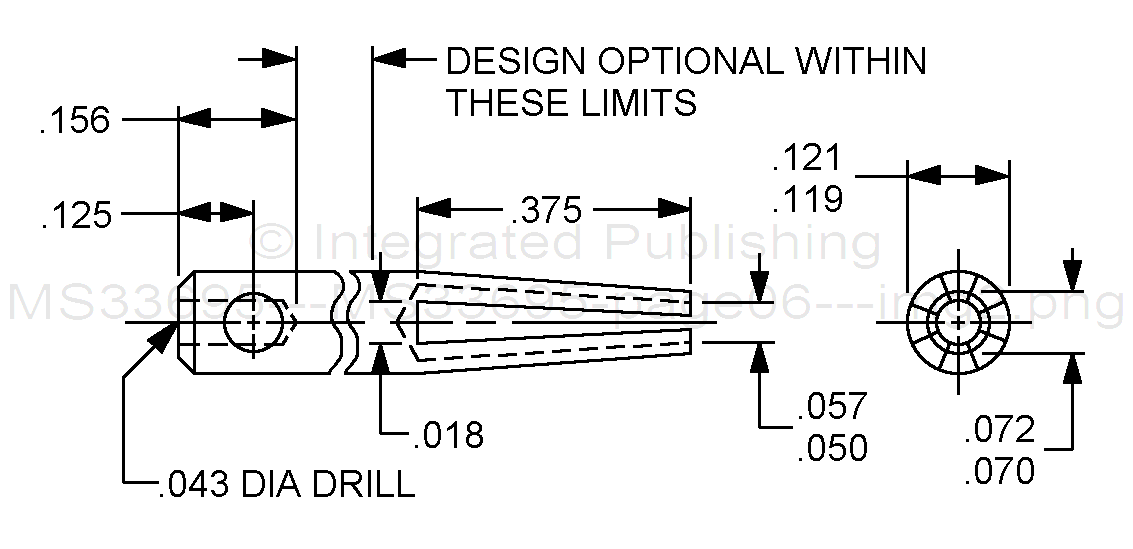

FIGURE 8. Socket contact, coaxial conductor.
6
