MS33695A
Inches |
mm |
.188 |
4.775 |
.375 |
14.300 |
.552 |
14.020 |
.572 |
14.528 |
.750 |
19.050 |
.768 |
19.507 |
NOTES:
1. Dimensions are in inches.
2. Unless otherwise specified, tolerance shall be ±.016.

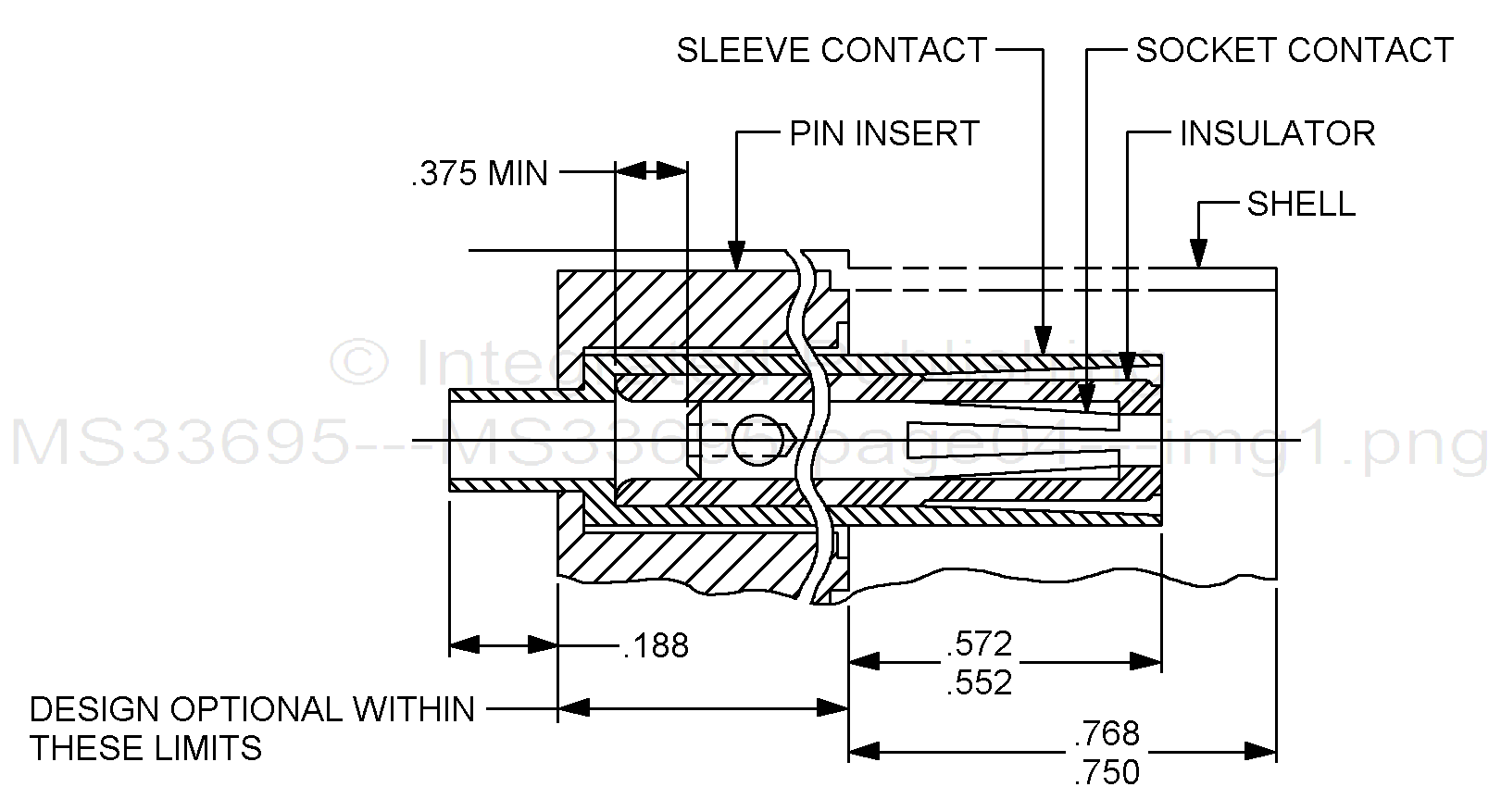

FIGURE 5. Socket contact assembly, coaxial connector.
4
