MS90565J
Quantity |
Contact |
Size |
Socket SAE-AS39029/49 M39029- |
Pin SAE-AS39029/48 M39029- |
1 |
A |
4 |
331 |
320 |
1 |
N |
4N |
331 (see note 6) |
321 |
2 |
G1, G2 |
6N |
329 (see note 6) |
318 |
NOTES:
1. Dimensions are in inches. Metric equivalents are given for information only. Unless otherwise specified, tolerance is ± .002 (.05 mm).
2. Unless otherwise specified, front face of pin insert pattern is shown. Socket inserts are the reverse.
3. -04-Cable IPCEA 2-NO 6 conductor round, type G.
4. -05-Cable-C0-02-HDF (2/6-2/8R) 1100 in accordance with MIL-DTL-3432
5. Mark 32-04 on 32-05 insert. Trademark and 32-( ) shall appear in available space. Contact identifying letter shall be located so as to identify relative contact.
6. Only the pin contact is lengthened and has the N (neutral) designation. The mating socket contact is the same as the power contact.

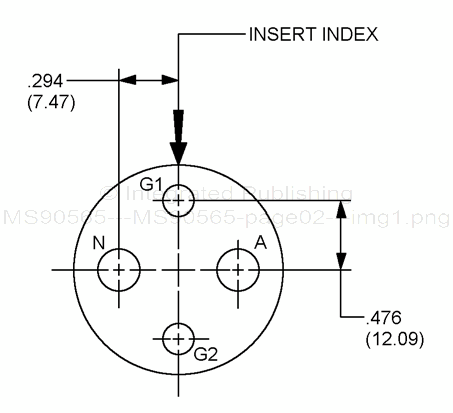

FIGURE 2. 28 volt AC single phase two wire grounding, -04 and -05 insert arrangements, service D.
2
