MS90565J
NOTES:
1. REF. MS90556******P.
2. REF. MS90558******P.
3. Front face of pin insert shown.

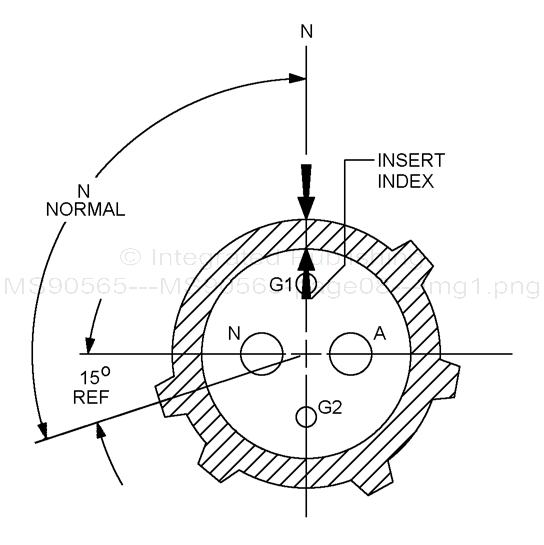

FIGURE 8. Socket contact pattern and polarization, insert in normal position (60 Hz power only).
8
