MS90565J
NOTES:
1. REF. MS90556******PX.
2. REF. MS90558******PX.
3. Front face of pin insert shown.

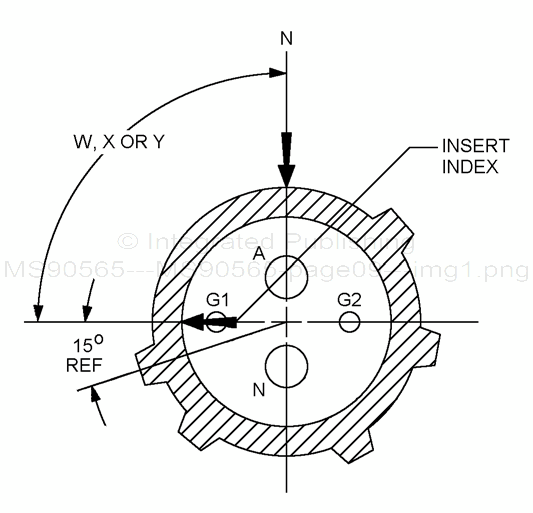

FIGURE 9. Socket contact pattern and polarization, insert in alternate position (400 Hz power only).
9
