MS90565J
NOTES:
1. REF. MS90555******SX.
2. REF. MS90557******SX.
3. Front face of socket insert shown.

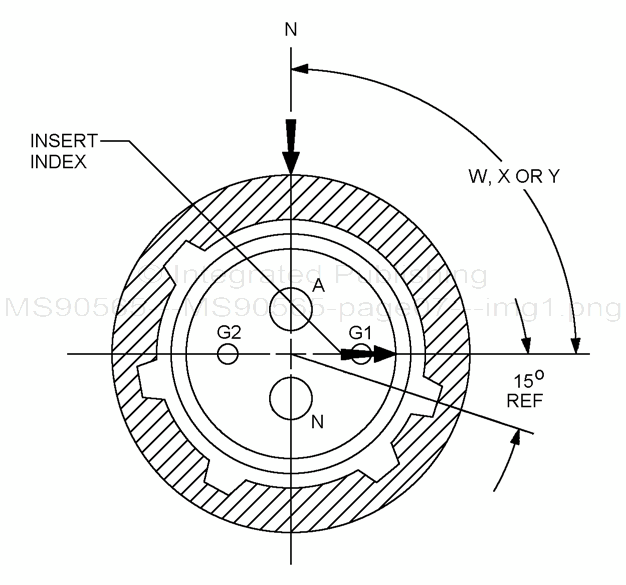

FIGURE 7. Socket contact pattern and polarization, Insert in alternate position (400 Hz power only).
7
