MIL-DTL-12883/41F
Inches
mm
Inches
mm
3.56
.140
0.08
.003
3.81
.150
0.76
.030
4.85
0.97
.190
.038
5.59
.220
2.16
.085
6.22
.245
2.36
.093
6.86
.270
2.79
.110
7.37
.290
2.84
.112
8.89
.350
3.18
.125
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are for general information only.
3. Unless otherwise specified, tolerances are +.005 inch (0.13 mm) for three place decimals and +.01
inch (0.25 mm) for two place decimals.
4. The diameter for loose stud mating hole in the socket body shall be:
01 through 05 diameter shall be .125 +.003 inch (3.18 +0.08 mm);
11 through 15 diameter shall be .116 +.003 inch (2.95 +0.08 mm).
5. Length from top of socket flange to base of .112-40 UNC-2A for:
01 through 05 length shall be .318 +0.10 inch (8.08 +0.25 mm).
11 through 15 length shall be .290 +0.10 inch (7.37 +0.25 mm).

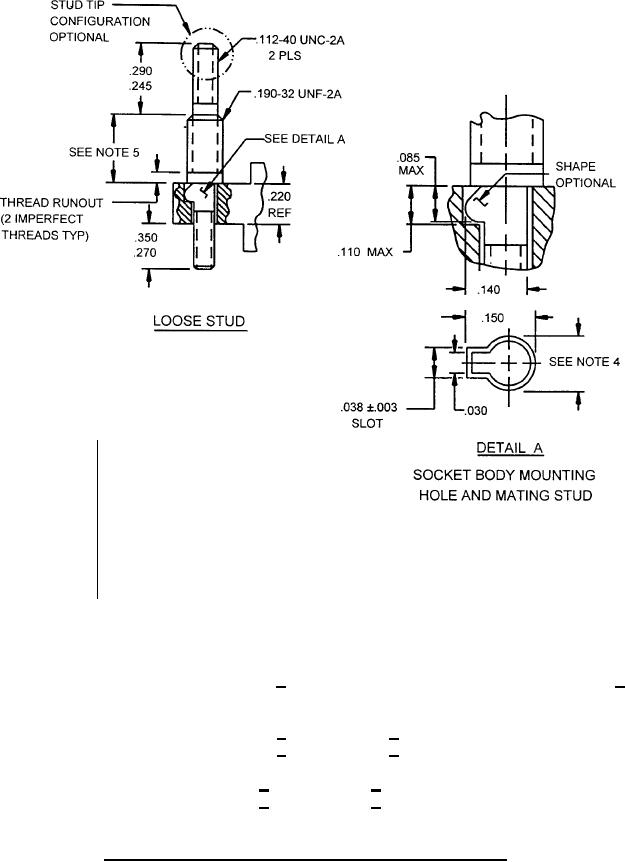

FIGURE 2. Loose stud mounting (-01 through 05 and 11 through 15) Continued.
