MIL-DTL-12883/41F
Inches
mm
2.36
.093
2.85
.112
3.18
.125
4.83
.190
5.59
.220
6.22
.245
6.86
.270
7.37
.290
8.89
.350
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are for general information only.
3. Unless otherwise specified, tolerances are +.005 (0.13 mm) for three place decimals and +.01 inch
(0.25 mm) for two place decimals.
4. Length from top of socket flange to base of .112-40 UNC-2A thread for:
06 through 10 length shall be .318 +.010 inch (8.08 +.25 mm).
16 through 20 length shall be .290 +.010 inch (7.37 +0.25 mm).

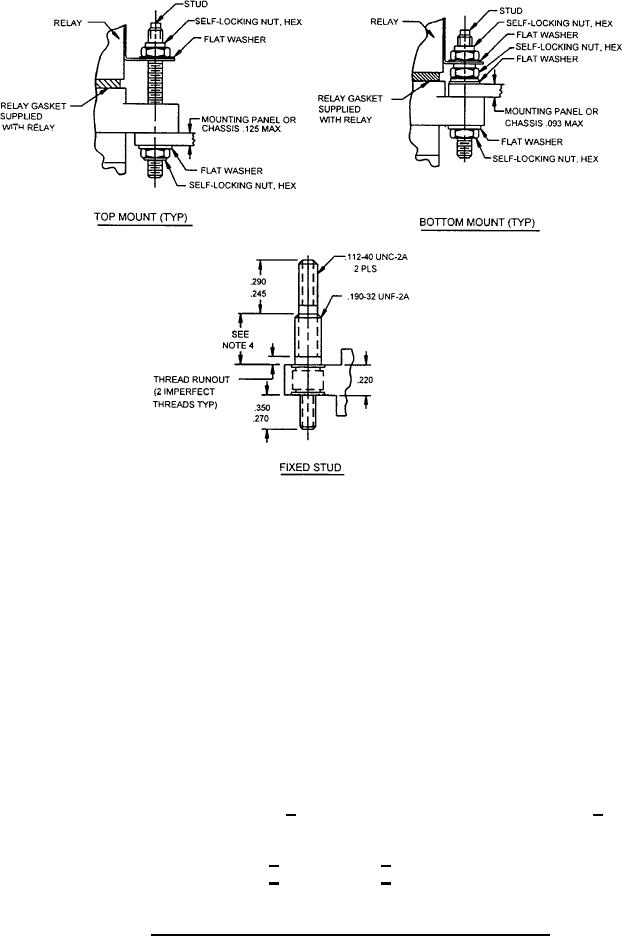

FIGURE 3. Fixed stud mounting (-06 through 10 and 16 through 20).
7
