MIL-DTL-2036 Enclosures For Electric And Electronic Equipment, Naval ShipboardThis specification covers requirements for enclosures that house electric and electronic equipment for Naval shipboard use. Details concerning construction, ventilation, cooling, and mechanical protection are included in this specification. This specification also covers that class of explosion proof equipment which will contain any spark or ignition within the enclosure and not permit ignition in the surrounding external atmosphere as a result of normal operation or failure of electrical circuits within the enclosure. This specification is not intended to cover enclosures which form an integral part of equipment such as batteries.

Pages 1 - - 21 - 22 - 23 - 24 - 25 - 26 - 27 - 28 - 29 - 30 - 31 - 32|||


. .
MIL-DTL-2036E
APPENDIX A
A ­ .4375 INCH (11.1125mm) MINIMUM, NOT INCLUDING CHAMFER AND "C" DIM. (A=A1+A2)
B ­ MINIUM DIMENSION EQUAL TO MINIMUM WIDTH OF A PLANE JOINT (SEE FIG. 1) MINUS
ACTUAL DIMENSION 1).
C ­ .03125 INCH (.79375mm) MAXIMUM DIAMETRICAL CLEARANCE.
NOTES: (1) CHAMFERS ARE NOT PART OF JOINT WIDTH.
(2) THE JOINT WIDTHS AND CLEARANCES SPECIFIED IN FIGURES A-1 AND A-2 ARE
APPLICABLE.
(3) FREE SPACE AT BOTTOM OF BOLT HOLE SHALL PERMIT BOLT TO BE SCREWED
HOME IF LOCKWASHER IS OMITTED.
SH 9253

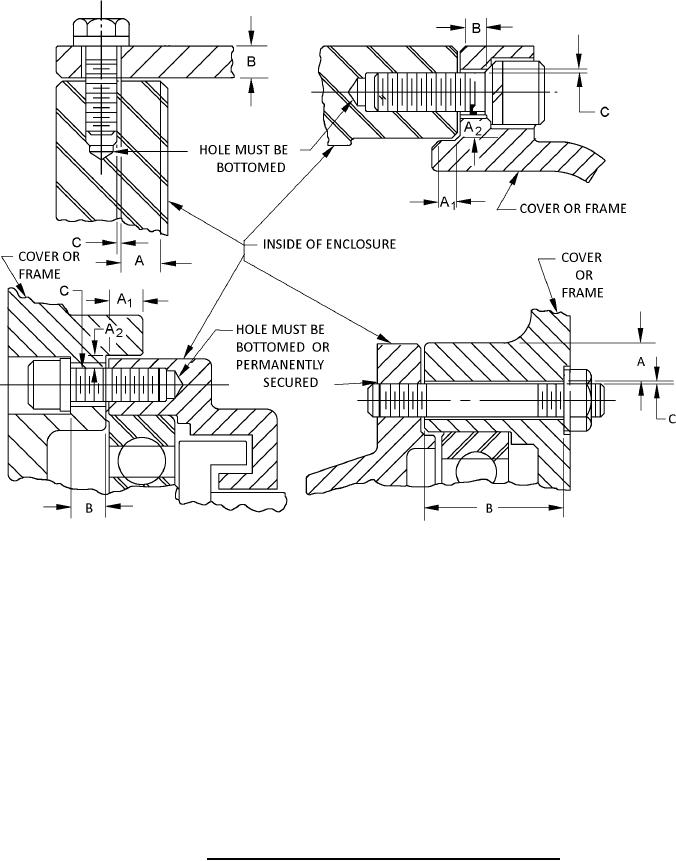

FIGURE A-6. Typical fastener locations in plane and stepped joints.
