MIL-DTL-2036 Enclosures For Electric And Electronic Equipment, Naval ShipboardThis specification covers requirements for enclosures that house electric and electronic equipment for Naval shipboard use. Details concerning construction, ventilation, cooling, and mechanical protection are included in this specification. This specification also covers that class of explosion proof equipment which will contain any spark or ignition within the enclosure and not permit ignition in the surrounding external atmosphere as a result of normal operation or failure of electrical circuits within the enclosure. This specification is not intended to cover enclosures which form an integral part of equipment such as batteries.

Pages 1 - - 22 - 23 - 24 - 25 - 26 - 27 - 28 - 29 - 30 - 31 - 32|||


MIL-DTL-2036E
APPENDIX A
WHEN BOLT HOLE CLEARANCE IS 0.016 INCHES (.0406mm) DIA. OR LESS; "A" DIM. SHALL BE
0.125 INCHES (3.175mm) MIN. AND "B" DIM. SHALL BE 0.5 INCHES (12.7mm) MIN.
WHEN BOLT HOLE CLEARANCE IS 0.031 INCHES (.7874mm) DIA. OR LESS; "A" DIM. SHALL BE
0.438 INCHES (11.1252mm) MIN. AND "B" DIM. SHALL BE (1) INCH (2.54mm) MIN. MINUS ACTUAL
"A" DIM.
SH 9254

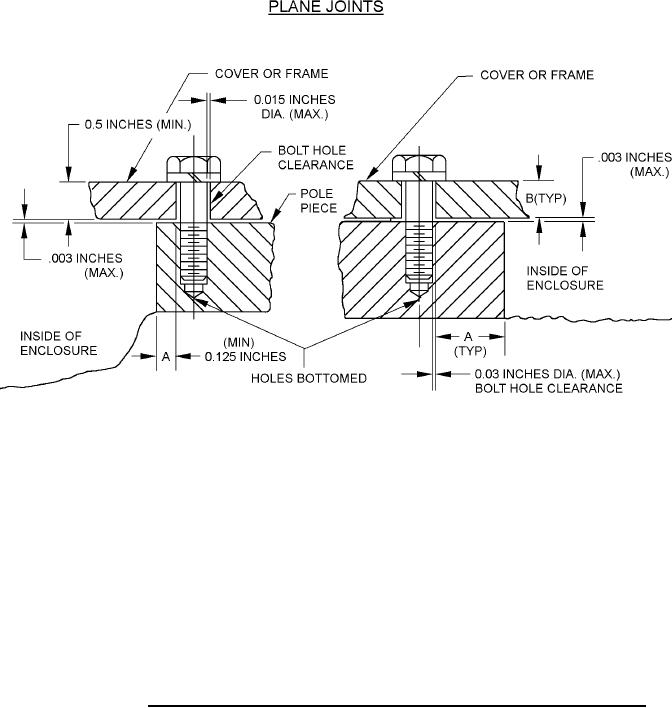

FIGURE A-7. Typical construction and fastener location for main pole and interpole joints.
31
