MIL-DTL-2036 Enclosures For Electric And Electronic Equipment, Naval ShipboardThis specification covers requirements for enclosures that house electric and electronic equipment for Naval shipboard use. Details concerning construction, ventilation, cooling, and mechanical protection are included in this specification. This specification also covers that class of explosion proof equipment which will contain any spark or ignition within the enclosure and not permit ignition in the surrounding external atmosphere as a result of normal operation or failure of electrical circuits within the enclosure. This specification is not intended to cover enclosures which form an integral part of equipment such as batteries.

Pages 1 - - 18 - 19 - 20 - 21 - 22 - 23 - 24 - 25 - 26 - 27 - 28 - 29 - 30 - 31 - 32|||

MIL-DTL-2036E

APPENDIX A

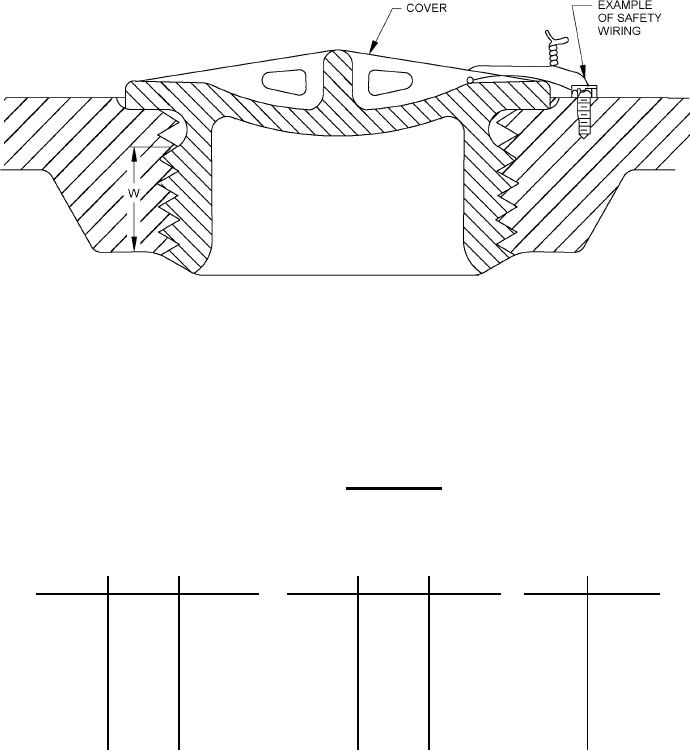

TYPICAL THREADED JOINT

W-MINIMUM 5 FULL THREADS OF ENGAGEMENT OR A

OF AXIAL JOINT OF .5 INCH, WHICHEVER IS GREATER.

THREADS SHALL BE CLASS 2 FIT

SH 9250

FIGURE A-3. Threaded joint.

Inches

1/32

.03125

0.79375

1.0

2.54

.008

0.2032

3/64

.046875

1.190625

1 1/4

1.25

31.75

.010

0.254

3/32

.09375

2.38125

.0015

0.0381

.012

0.3048

1/8

.125

3.175

.0016

0.0406

.015

0.381

1/4

.25

6.35

.0020

0.0508

.030

0.762

7/16

.4375

11.1125

.003

0.0762

.031

0.7874

1/2

12.7

.004

0.1016

.125

3.175

5/8

.625

15.875

.005

0.127

.438

11.1252

3/4

.75

19.05

.007

0.177

12.7
