8 inch printed wiring boards, and for interconnections between printed wiring boards. The connectors are intended to provide a reliable connection between printed wiring and conventional wiring. The interconnector concept is intended to provide connection of printed wiring on one board to printed wiring on another board.

Pages 1 - - 2 - 3 - 4 - 5 - 6 - 7 - 8|||9 - 10 - 11 - 12 - 13 - 14 - 15|||

MIL-DTL-21097G

3.3.7.1.1 Overall finish. All parts of the contact shall be gold plated, in accordance with ASTM B488, type II, class

1.27, code C.

3.3.7.1.2 Localized finish.

3.3.7.1.2.1 Contact mating area. The contact mating area shall be gold in accordance with ASTM B488, type II, class

1.27, code C, over nickel in accordance with SAE-AMS2403 (30 to 150 microinches). The contact mating area is

defined on figure 1, configurations A through E.

Inches

.020

0.51

.040

1.02

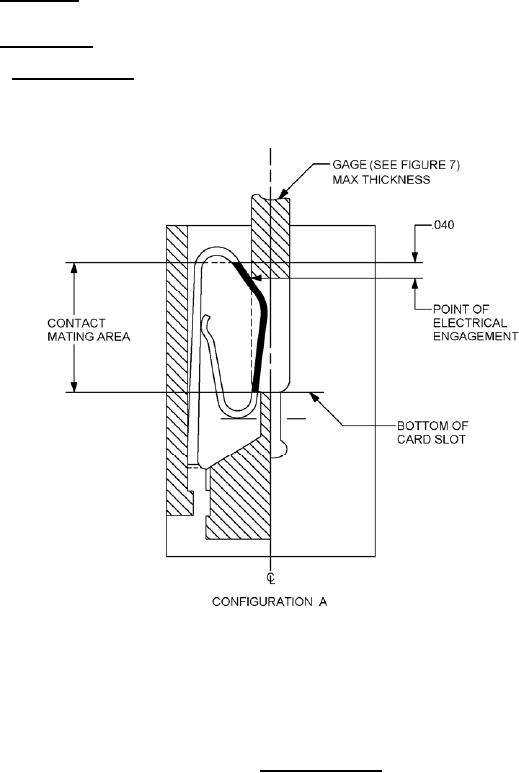

FIGURE 1. Contact mating area.
