MIL-DTL-21097G

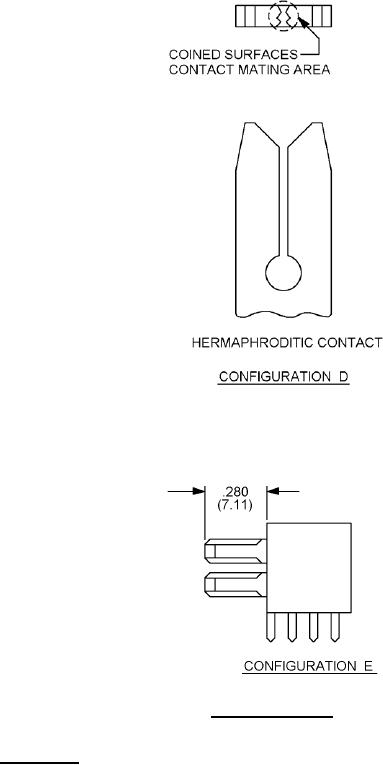

FIGURE 1. Contact mating area - Continued.

3.3.7.1.2.2 Terminations.

a. Solder termination areas shall be tin-lead plated in accordance with SAE-AMS-P-81728, .0001 inch minimum. The

tin content for class b shall be 50 to 70 percent. For classes A or C, and type CS, the tin content shall be 50 to 95

percent.

b. Crimp termination (class C) areas shall be gold plated in accordance with ASTM B488 type II, class 1.27, code C,

over a nickel underplate in accordance with SAE-AMS2403 (30 to 150 microinches).
