MIL-DTL-27434B
Inches
mm
.001
0.02
.002
0.05
.003
0.08
.006
0.15
.010
0.25
.014
0.35
.065
1.65
.290
7.37
.309
7.85
.343
8.71
.359
9.12
.750
19.05
.765
19.43
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.

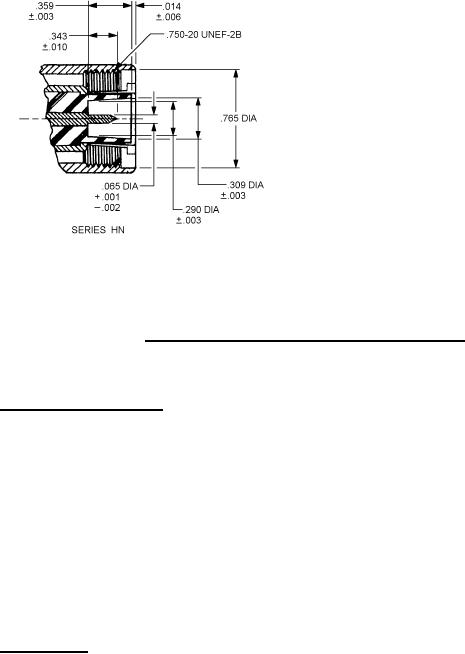

FIGURE 2. Dimensional requirements for male terminations Continued.
5. PACKAGING
5.1 Packaging requirements. For acquisition purposes, the packaging requirements shall be as
specified in the contract or order (see 6.2). When actual packaging of materiel is to be performed by DoD
in-house contractor personnel, these personnel need to contact the responsible packaging activity to
ascertain packaging requirements. Packaging requirements are maintained by the Inventory Control
Point's packaging activities within the Military Service or Defense Agency, or within the military service
system commands. Packaging data retrieval is available from the managing Military Department's or
Defense Agency's automated packaging files, CD-ROM products, or by contacting the responsible
packaging activity.
6. NOTES
(This section contains information of a general or explanatory nature that may be helpful, but is not
mandatory.)
6.1 Intended use. Connector adapters covered by this specification are intended for use in radio-
frequency applications up to 10,000 megahertz. Their use is governed by temperature limitation of
materials, and they are not recommended for use applications where temperatures exceed 125ºC.
16
