METRIC
MIL-DTL-38999/22H
14 June 2013
SUPERSEDING
MIL-DTL-38999/22G
10 July 2008
DETAIL SPECIFICATION SHEET
CONNECTORS, ELECTRICAL, CIRCULAR, RECEPTACLE,
THREADED, DUMMY STOWAGE, SERIES III, METRIC
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-DTL-38999.
mm
Inches
0.13
.01
12.40
.49
12.95
.51
14.50
.57
14.73
.58

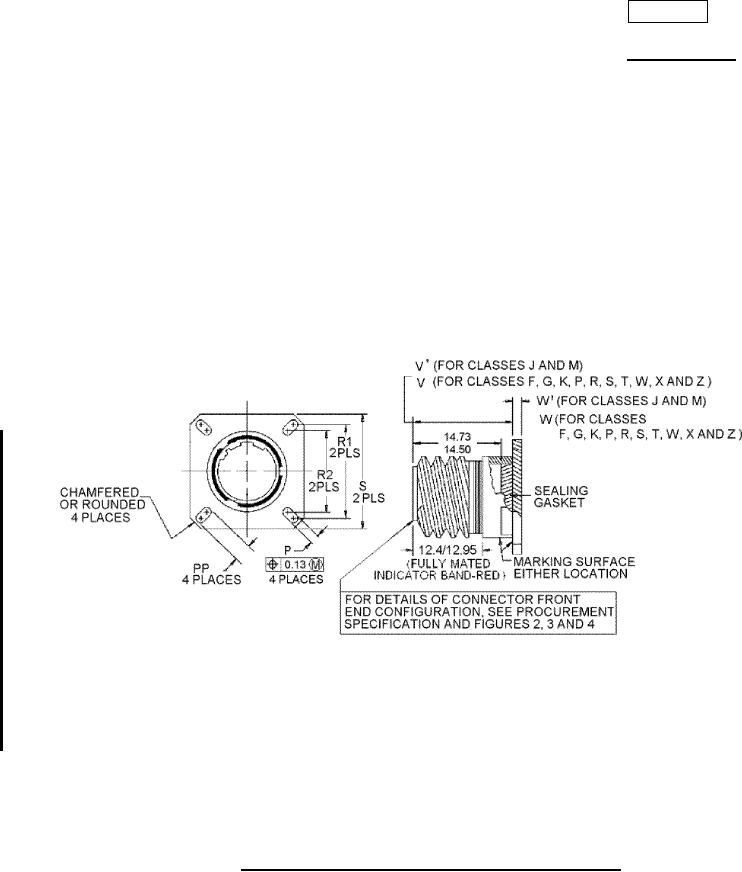

FIGURE 1. Receptacle, classes F, G, J, K, M, P, R, S, T, W, X and Z.
AMSC N/A
FSC 5935
