MIL-DTL-38999/22H
SHELL SIZES 11, 13 AND 15
Shell
A
B
size
dia
dia
11
15.88/15.60 (.625/.614)
14.66/14.45 (.577/.569)
13
19.66/19.38 (.774/.763)
17.50/17.30 (.689/.681)
15
22.84/22.56 (.899/.888)
20.65/20.44 (.813/.805)
NOTES:
1. Dimensions are in millimeters.
2. Inch equivalents are given for information only.

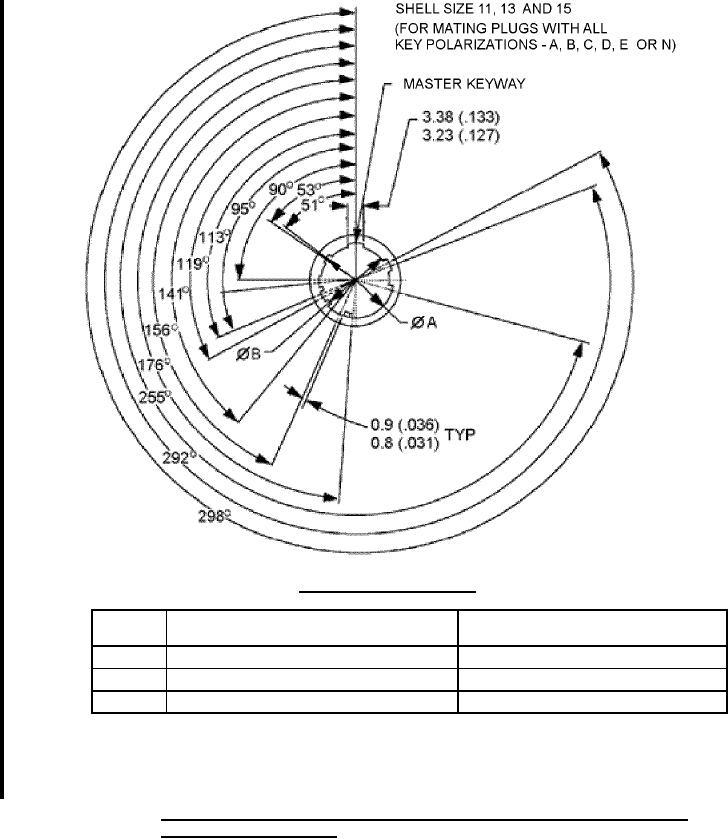

FIGURE 3. Receptacle, keyway arrangement, classes F, G, J, K, M, P, R, S, T, W, X and Z
(shell sizes 11, 13 and 15).
