MIL-DTL-38999/22H
SHELL SIZE 9, SHELL SIZE CODE AA
NOTES:
1. Dimensions are in millimeters.
2. Inch equivalents are given for information only.

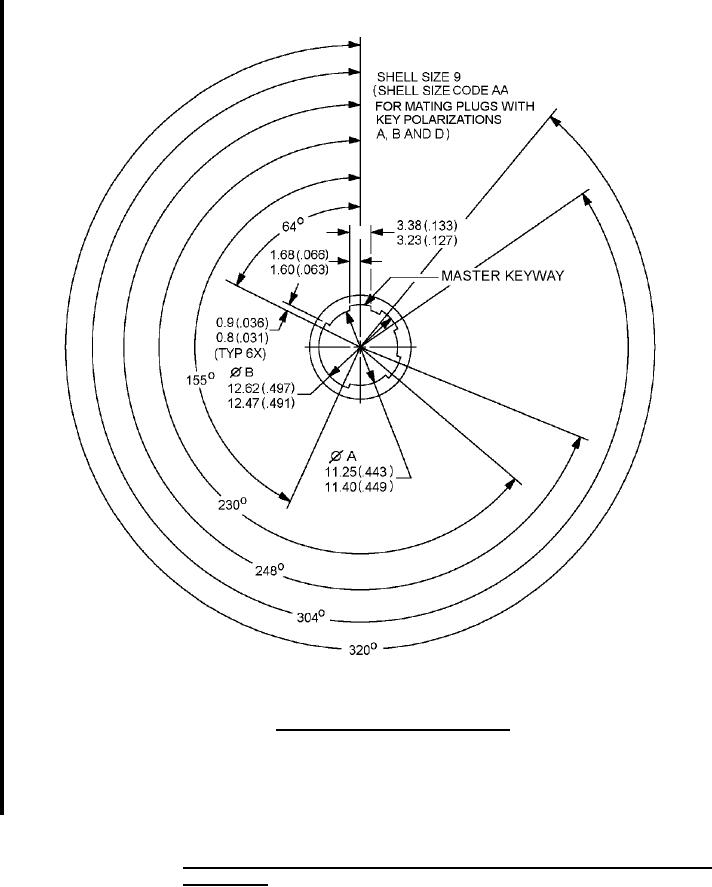

FIGURE 2. Receptacle, keyway arrangements, classes F, G, J, K, M, P, R, T, S, W, X and Z
(shell size 9) - Continued.
5
